New

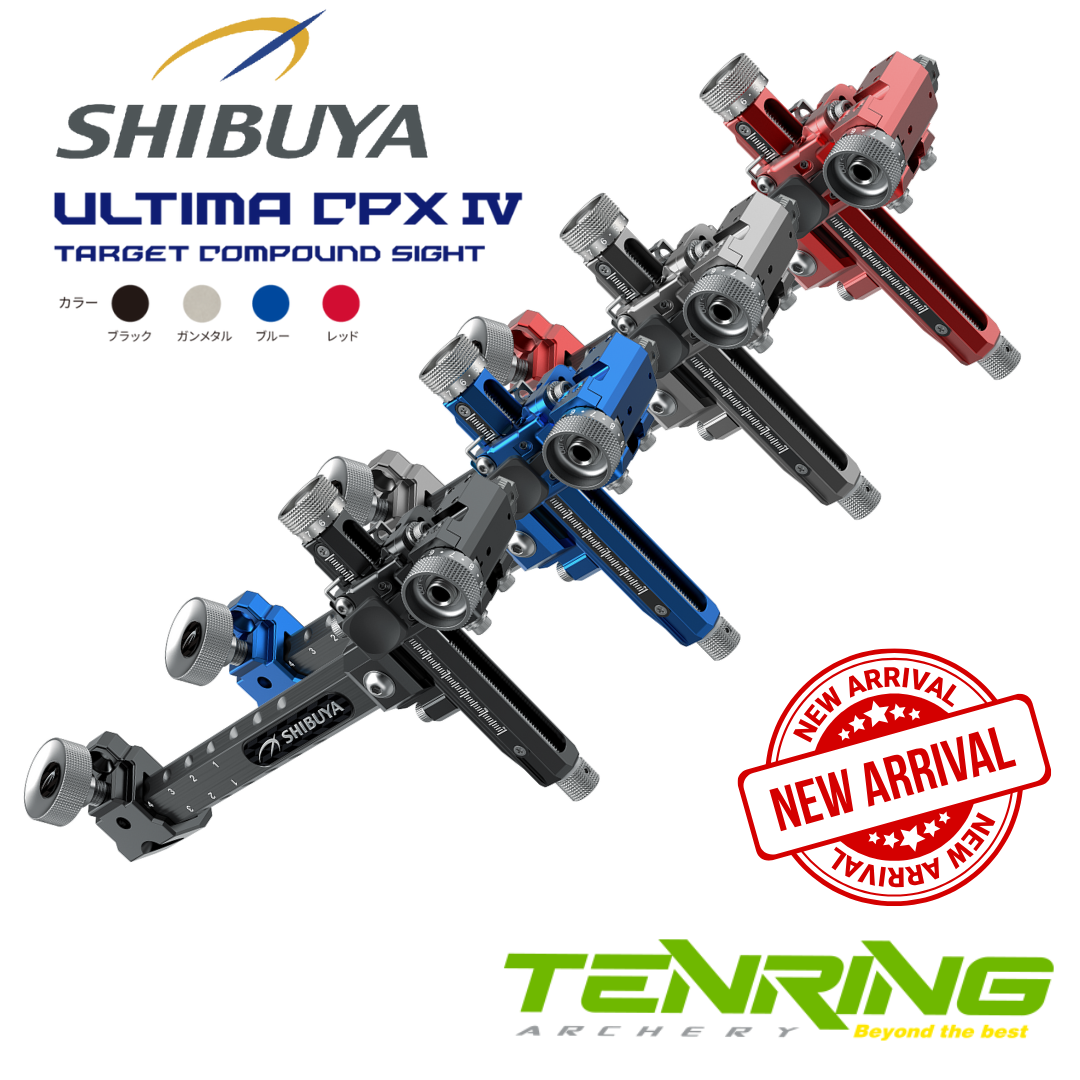

SHIBUYA | ULTIMA CPX IV | COMPOUND BOW SIGHT | COMPOUND SIGHT
₹38,000.00
Extremely rigid and lightweight design. The “gold standard” for 3D and target compound sights.
Product Specification Table
| Model | ULTIMA CPXⅣ | ULTIMA CPX III | ULTIMA CP PRO G2 | |
|---|---|---|---|---|
| Extension bar | 400-6: 6-inch carbon extension 400-9: 9-inch carbon extension |
400-6: 6-inch carbon extension 400-9: 9-inch carbon extension |
400-6: 6-inch polygonal carbon extension 400-9: 9-inch polygonal carbon extension |
|
| weight | 400-6: 200g 400-9: 220g |
400-6: 206g 400-9: 225g |
400-6: 240g 400-9: 265g |
|
| Aperture Distance (APD) | 400-6: Max. 187mm/Min. 99mm 400-9: Max. 264mm/Min. 99mm |
400-6: Max. 187mm/Min. 99mm 400-9: Max. 264mm/Min. 99mm |
400-6: Max. 191mm/Min. 131mm 400-9: Max. 265mm/Min. 205mm |
|
| Elevation | method | Lockdown-less screw drive with jump mechanism | Lockdown-less screw drive with jump mechanism | Lockdown-less screw drive with jump mechanism |
| length | 100mm (approximately 4 inches) | 100mm (approximately 4 inches) | 100mm (approximately 4 inches) | |
| Range of motion | Approximately 73mm | Approximately 73mm | 73mm | |
| Movable step | 1 rotation = 1/32 inch (approximately 0.8 mm) | 1 rotation = 1/24 inch (approximately 1 mm) | 1 rotation = 1/32 inch (approximately 0.8 mm) | |

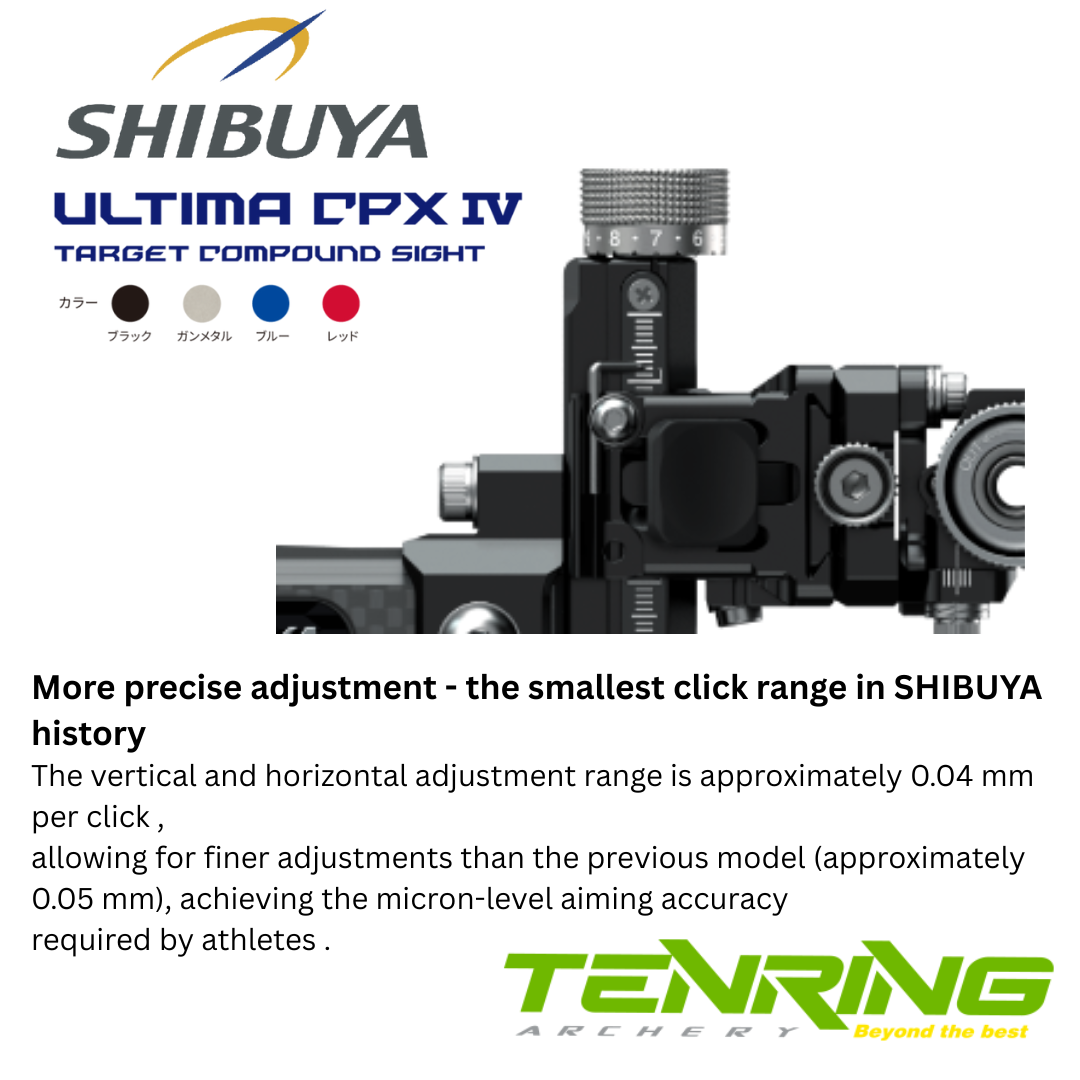

| 1 click = 1/640 inch (approximately 0.04 mm) | 1 click = 1/480 inch (approximately 0.05 mm) | 1 click = 1/640 inch (approximately 0.04 mm) | ||
| Tilt adjustment | Yes | Yes | Yes | |
| Vintage | Range of motion | Approximately 10mm | Approximately 10mm | 14mm (2nd axis offset +9mm/-7mm also available) |
| Movable step | 1 rotation = 1/32 inch (approximately 0.8 mm) | 1 rotation = 1/24 inch (approximately 1 mm) | 1 rotation = 1/32 inch (approximately 0.8 mm) | |
| 1 click = 1/640 inch (approximately 0.04 mm) | 1 click = 1/480 inch (approximately 0.05 mm) | 1 click = 1/640 inch (approximately 0.04 mm) | ||
| Supported scopes | Screw size No.10-32 | Screw size No.10-32 | Screw size No.10-32 | |
| 2nd and 3rd axis adjustment | Yes | Yes | Yes | |
| extension | length | 400-6: 157mm (approximately 6 inches) 400-9: 233mm (approximately 9 inches) |
400-6: 157mm (approximately 6 inches) 400-9: 233mm (approximately 9 inches) |
400-6: 157mm (approximately 6 inches) 400-9: 225mm (approximately 9 inches) |
| Adjustment Range | 400-6: 3.5 inches (approx. 89 mm) 400-9: 6.5 inches (approx. 165 mm) |
400-6: 3.5 inches (approx. 89 mm) 400-9: 6.5 inches (approx. 165 mm) |
400-6/400-9 common: 2.4 inches (60 mm) | |
| Adjustment Steps | 0.5 inches (approximately 12.7 mm) | 0.5 inches (approximately 12.7 mm) | 0.47 inches (12 mm) | |
| Main materials | Elevation Department | 6000 series aluminum alloy | 6000 series aluminum alloy | 6000 series aluminum alloy |
| Box section | 6000 series aluminum alloy | 6000 series aluminum alloy | 6000 series aluminum alloy | |
| extension | carbon fiber | carbon fiber | carbon fiber | |
| color | Black, Blue, Red, Gunmetal Silver | Black, Blue, Red, Gunmetal Silver | Black, Blue, Red, Gunmetal Silver | |
| Right/Low | Yes | Yes | Yes | |
| Release date | 2025 | 2022 | 2025 | |
| accessories | Sight soft case No. 10-24 Mount fixing screws Hex wrench 1.5mm/2mm/3mm Sight plate x 1 Sight chart plate x 1 Plank tape Offset bracket |
Sight soft case No. 10-24 Mount fixing screws Hex wrench 1.5mm/2mm/3mm Sight plate x 1 Sight chart plate x 1 Plank tape Offset bracket |
Sight soft case No. 10-24 Mount fixing screws Hex wrench 1.5mm/2mm/3mm Sight plate x 1 Sight chart plate x 8 Blank tape |
|
| Instruction manual *See the website using the QR code | Instruction manual and warranty card |
Instruction manual *See the website using the QR code | ||
| Options (sold separately) | Bridge Lock Extension Set | – | Offset Bracket Bridge Lock Extension Set |
|
Note:
1. Special Color, Size 9″ & LH Sight Available on Only Special Order
2. Shipping Charges are Extra as per Actual Basis
Additional information
Related products
BEITER | BEITER K – LENS SCOPE | COMPOUND | SIGHT SCOPE
Beiter K-Lens Scope – Specifications
-
Manufacturer: Beiter (Werner Beiter, Germany)
-
Type: Archery Scope (for target and field archery)
-
Lens System: K-Lens (designed in cooperation with Kowa)
-
Lens Material: High-quality optical glass with multi-layer coatings
-
Magnification Options:
-
0.0x (no lens / plain glass)
-
0.25x
-
0.50x
-
0.75x
-
1.0x
-
1.5x
-
2.0x
-
3.0x
-
-
Anti-reflection: Multi-coated lens to reduce glare and improve clarity
-
Housing Size Options: 29 mm and 39 mm
-
Threading: Fits Beiter Scope bodies (compatible with most popular sight mounting systems)
-
Retina Relief: Wide field of view, distortion-free edges
-
Durability: Scratch-resistant, weather-resistant lens coatings
-
Customization:
-
Accepts different pins, dots, and fiber optics
-
Works with Beiter centralizer system and sight tunnel
-
Freight Charges are Extra as per actual basis.
Prices are Negotiable for Regular customers at many Products. Be our regular Customer.
PSE | DOMINATOR DUO X | 38 | COMPOUND BOW
Dominator Duo X 38
Target Archery, the driving force behind continuous evolution in the sport, converges precision, technique, and innovation to redefine the possible limits of human skill and equipment. From meticulously refined equipment to strategic mastery in competition, every facet of archery reaches its pinnacle in this arena.
“Impossible” is a term our product development team views as a challenge to overcome, reflecting our relentless pursuit of innovation in the archery industry. Raising the bar for accuracy in compound bows, showcasing our dedication to pushing boundaries. Engineered with state-of-the-art materials and precision craftsmanship, this next-generation DUO sets a new standard in performance and reliability.
With the imminent launch of the Dominator Duo X, the second generation of our groundbreaking DUO technology, we continue to redefine the achievable. Building on its predecessor’s legacy of dominance on major stages, Duo X embodies precision engineering and cutting-edge design.
Taking successful features from our deflex-designed Supra X and seamlessly integrating them into our reliable reflexed Dominator Duo handle, we proudly introduce the Dominator Duo X. This evolution blends enhanced features from the Supra X with the intuitive handle and success of the Dominator Duo. The Duo X sets a new benchmark in archery, promising unparalleled performance and a seamless shooting experience across all skill levels.
Our commitment to excellence shines through in every detail of Dominator Duo X, meticulously crafted to deliver unmatched performance and reliability. From its new ergonomic design to the unmatched control and consistency, this bow signifies years of research and development. Archers demanding perfection can trust Dominator Duo X to enhance their performance, whether in competitive arenas or during solitary practice sessions.
Whether striving for titles or enjoying the tranquility of shooting arrows, each moment adds to archery’s enduring global legacy.
It’s more than a bow; it symbolizes our commitment to pushing boundaries in archery.
Bow Specifications
Cam - M2 | SE2 | EM2
Brace height - 6 3/4″ | 7-1/8″| 6 7/8″
Axle to axle - 38"
Letoff - 65-75%
Mass weight - 4.9 lbs.
Draw length range - 26″ – 30″ | 26 1/2” – 32″| 23-29″
Draw weights - 50, 60
Limb bolt turns - 10
NOTE: SHIPPING CHARGES ARE EXTRA AS PER ACTUAL BASIS SPECIFIC COLOR WOULD BE AVAILABLE ON SPECIAL ORDER Prices are Negotiable for Regular customers at many Products. Be our regular Customer
SANLIDA | X10 COMPOUND SHORT BAR
The "SANLIDA X10 COMPOUND SHORT BAR" refers to a component of a stabilizer system for compound bows. Here's a breakdown of its features and purpose:
- Function: This "short bar" acts as a side rod in a stabilizer setup, primarily designed to absorb vibration and noise during shooting.
- Material: It is constructed from carbon material, contributing to its lightness and strength.
- Lengths: The short bar is available in 11" 12" and 15" lengths.
- Diameter: It has a diameter of 18mm.
- Benefits: This stabilizer aims to improve shooting accuracy and performance by reducing vibrations and enhancing stability.
TENRING | COMPOUND SINGLE | BOW CASE
NOTE:-
SHIPPING CHARGES ARE EXTRA AS PER ACTUAL BASIS
Prices are Negotiable for Regular customers at many Products. Be our regular Customer.
SANLIDA | DRAGON 10 WRIST SLING | COMPOUND BOW ACCESSORIES
Sanlida offers wrist slings as part of their archery equipment lineup, catering to both recurve and compound bow archers. These slings are designed to enhance stability, support, and overall shooting experience for archers of all levels
Key features
- Adjustable Size: Sanlida wrist slings typically feature adjustable straps (like Velcro straps) to accommodate a wide range of hand sizes, from children to adults.
- Durable Materials: They are often made from robust materials like nylon or paracord to withstand rigorous use during target shooting or hunting.
- Comfortable Design: The slings are designed for comfort, sometimes with padding, allowing for longer archery sessions without discomfort.
- Universal Compatibility: Sanlida wrist slings are often compatible with various archery setups, including both recurve and compound bows.
FIVICS | LIMBS OR SHOE PROTECTOR | ARCHERY ACCESSORIES
Fivics Limb Protector
- Made from durable silicon rubber in an eye catching design
- Worn on your shoe to protect both it and your limbs tip when nocking your arrow or when bow is at rest
- Stud fastener to easily loop around your shoe lace to hold in place
- Available in three colours to suit your mood or match your kit.
- NOTE:
- SHIPPING CHARGES ARE EXTRA AS PER ACTUAL BASIS Prices are Negotiable for Regular customers at many Products. Be our regular Customer
PSE | DOMINATOR DUO X 35 | COMPOUND BOW
The PSE Dominator Duo X 35 is a compound bow designed for target archery. It is the latest version in the Dominator Duo X series, combining elements from the Supra X and the Dominator Duo bows
Key features
- Hybrid Design: It blends the intuitive reflexed riser of the original Dominator Duo with the deflex-designed features from the Supra X.
- Ambidextrous Riser: The bow can be switched between right-handed and left-handed configurations.
- Cam Options: You can choose between M2, SE2, or EM2 cams to customize the draw cycle, speed, and holding weight to your preference.
- EZ.220 Snap Spacer System: This system allows for quick and precise tuning and cam lean adjustments, reducing the time spent on a bow press.
- Full Draw Stability Technology: It features a dynamic brace height and actively resists torque at full draw, leading to increased accuracy.
- Ergonomic Grip: The bow incorporates a new ergonomic grip design with interchangeable options for a personalized feel.
- Length: It has a 35-inch axle-to-axle length, making it a good choice for those who find the longer 38 or 40-inch versions less suitable for disciplines like 3D or outdoor target archery.
-
Bow Specifications
Cam
Brace height
Axle to axle
Letoff
Mass weight
Draw length range
Draw weights
Limb bolt turns
NOTE: SHIPPING CHARGES ARE EXTRA AS PER ACTUAL BASIS SPECIFIC COLOR WOULD BE AVAILABLE ON SPECIAL ORDER Prices are Negotiable for Regular customers at many Products. Be our regular Customer
HOYT | NEW | CONCEPT X | 37 | COMPOUND BOW
The Hoyt Concept X 37 and 40 represent the exceptional engineering archers expect from Hoyt. With a riser, limb system, and cam system all designed to complement each other, the Concept X gives shooters an extremely stable foundation for seeking out target archery perfection.
Starting with a riser that minimizes rotational translation, adding a limb system that is the most torsionally stable we have ever designed, and wrapping it up with the SCTR cams - the culmination of two decades of Hoyt Cam & 1/2 and HB cam systems rolled into one. The Concept X beats the standards you expect from Hoyt.
Reviews
There are no reviews yet.
