| COLOUR | Black, BLUE, RED, SILVER |
|---|---|
| RH/LH | LEFT HAND, RIGHT HAND |
| SIZE | 6", 9" |
New

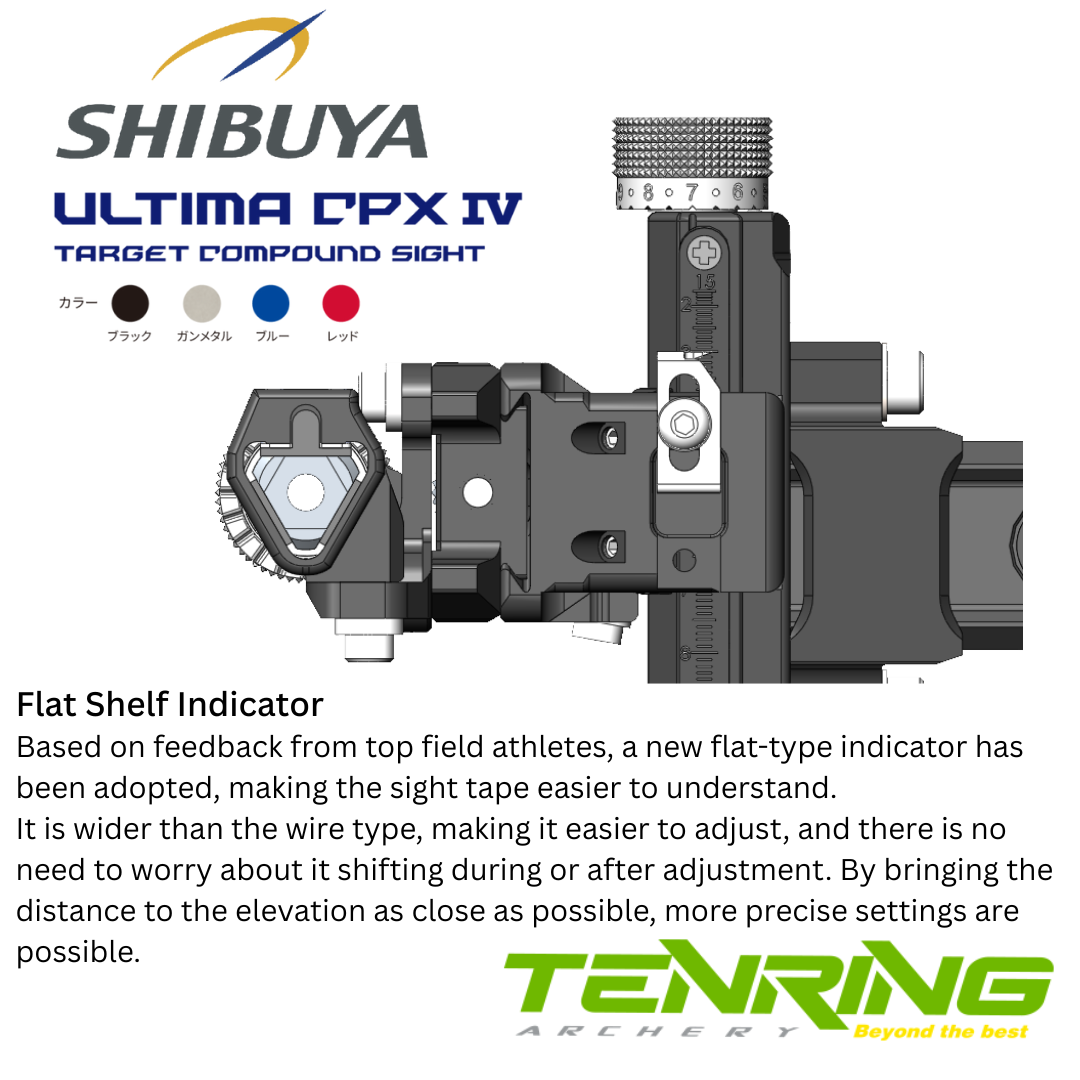

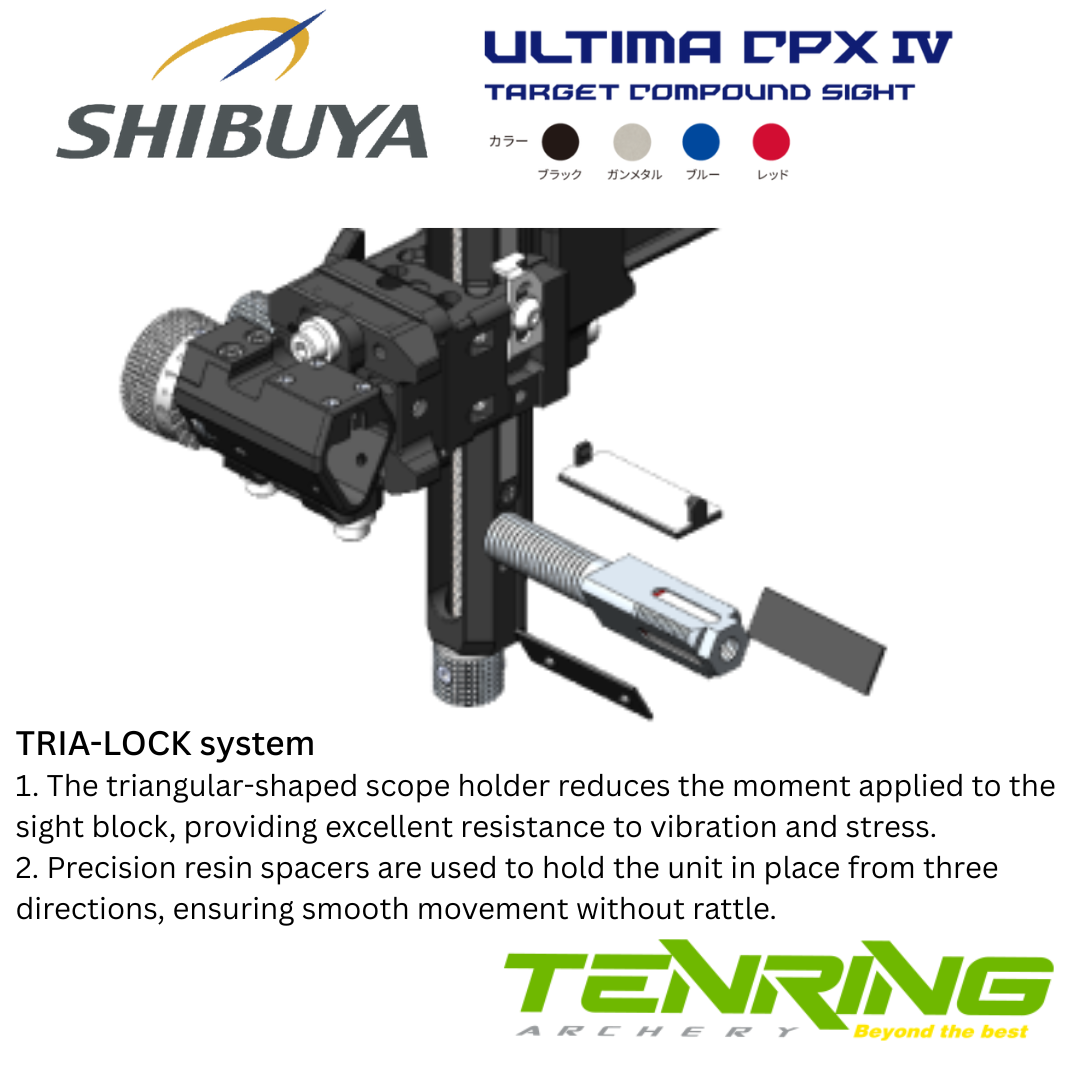

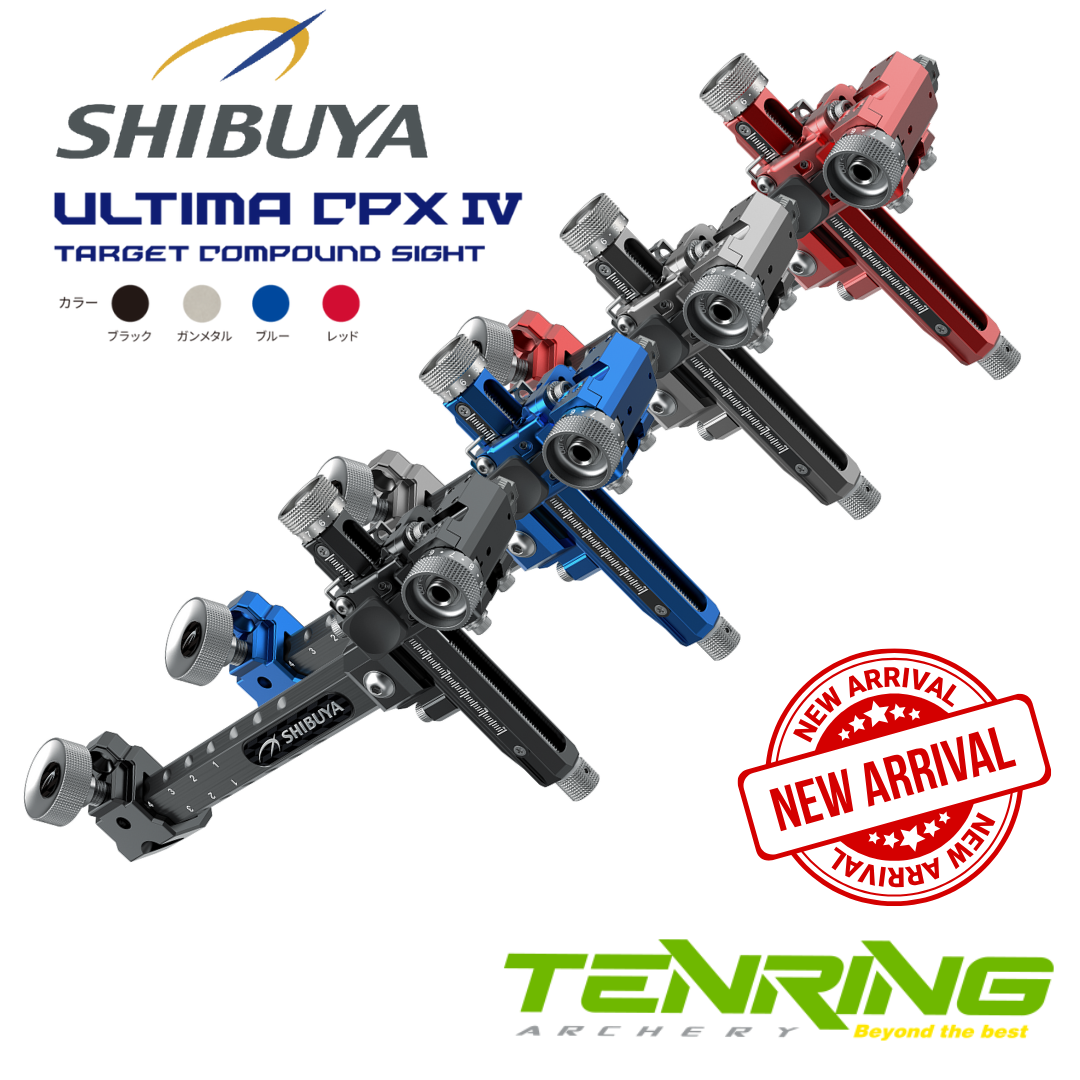

SHIBUYA | ULTIMA CPX IV | COMPOUND BOW SIGHT | COMPOUND SIGHT
₹38,000.00
Extremely rigid and lightweight design. The “gold standard” for 3D and target compound sights.
Product Specification Table
| Model | ULTIMA CPXⅣ | ULTIMA CPX III | ULTIMA CP PRO G2 | |
|---|---|---|---|---|
| Extension bar | 400-6: 6-inch carbon extension 400-9: 9-inch carbon extension |
400-6: 6-inch carbon extension 400-9: 9-inch carbon extension |
400-6: 6-inch polygonal carbon extension 400-9: 9-inch polygonal carbon extension |
|
| weight | 400-6: 200g 400-9: 220g |
400-6: 206g 400-9: 225g |
400-6: 240g 400-9: 265g |
|
| Aperture Distance (APD) | 400-6: Max. 187mm/Min. 99mm 400-9: Max. 264mm/Min. 99mm |
400-6: Max. 187mm/Min. 99mm 400-9: Max. 264mm/Min. 99mm |
400-6: Max. 191mm/Min. 131mm 400-9: Max. 265mm/Min. 205mm |
|
| Elevation | method | Lockdown-less screw drive with jump mechanism | Lockdown-less screw drive with jump mechanism | Lockdown-less screw drive with jump mechanism |
| length | 100mm (approximately 4 inches) | 100mm (approximately 4 inches) | 100mm (approximately 4 inches) | |
| Range of motion | Approximately 73mm | Approximately 73mm | 73mm | |

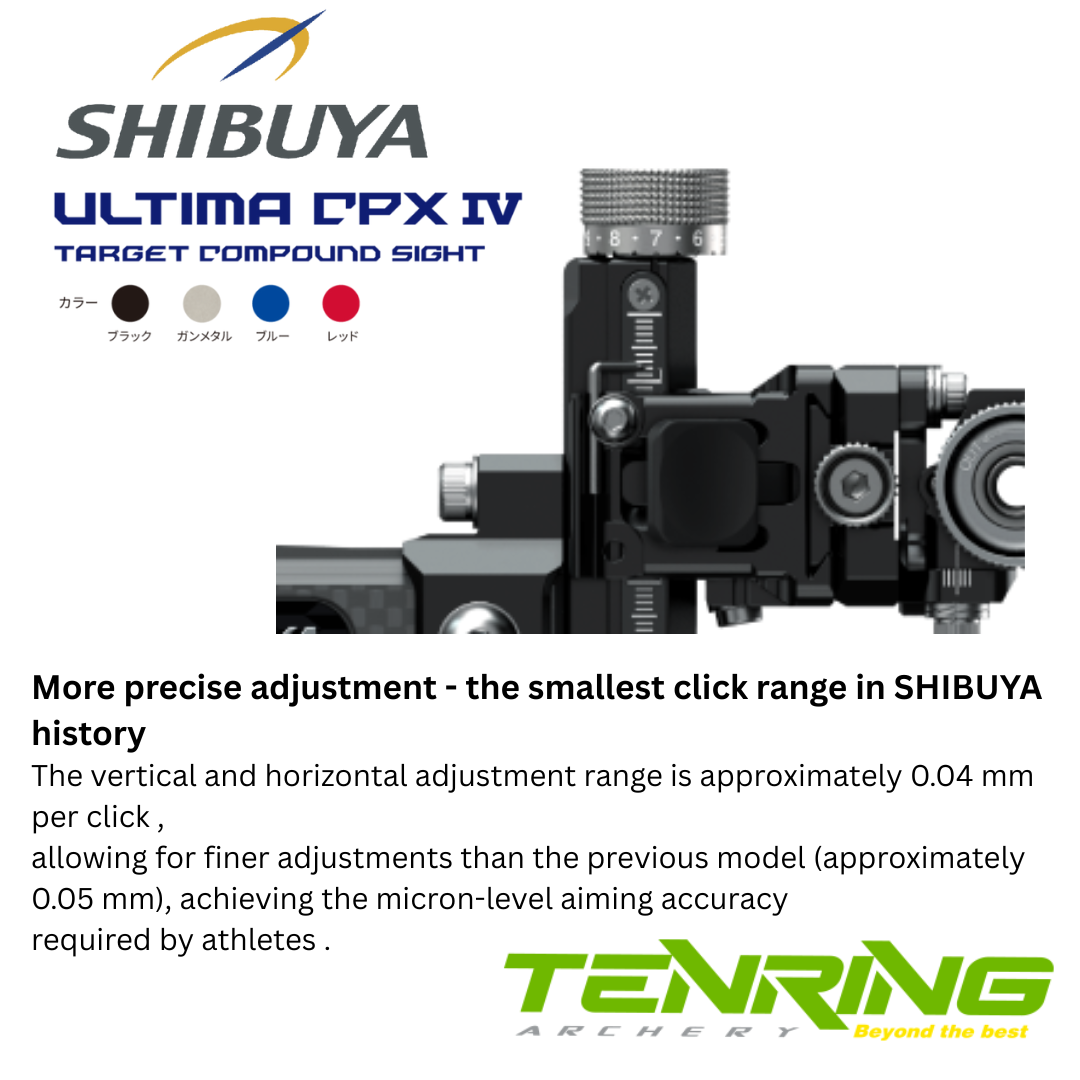

| Movable step | 1 rotation = 1/32 inch (approximately 0.8 mm) | 1 rotation = 1/24 inch (approximately 1 mm) | 1 rotation = 1/32 inch (approximately 0.8 mm) | |
| 1 click = 1/640 inch (approximately 0.04 mm) | 1 click = 1/480 inch (approximately 0.05 mm) | 1 click = 1/640 inch (approximately 0.04 mm) | ||
| Tilt adjustment | Yes | Yes | Yes | |
| Vintage | Range of motion | Approximately 10mm | Approximately 10mm | 14mm (2nd axis offset +9mm/-7mm also available) |
| Movable step | 1 rotation = 1/32 inch (approximately 0.8 mm) | 1 rotation = 1/24 inch (approximately 1 mm) | 1 rotation = 1/32 inch (approximately 0.8 mm) | |
| 1 click = 1/640 inch (approximately 0.04 mm) | 1 click = 1/480 inch (approximately 0.05 mm) | 1 click = 1/640 inch (approximately 0.04 mm) | ||
| Supported scopes | Screw size No.10-32 | Screw size No.10-32 | Screw size No.10-32 | |
| 2nd and 3rd axis adjustment | Yes | Yes | Yes | |
| extension | length | 400-6: 157mm (approximately 6 inches) 400-9: 233mm (approximately 9 inches) |
400-6: 157mm (approximately 6 inches) 400-9: 233mm (approximately 9 inches) |
400-6: 157mm (approximately 6 inches) 400-9: 225mm (approximately 9 inches) |
| Adjustment Range | 400-6: 3.5 inches (approx. 89 mm) 400-9: 6.5 inches (approx. 165 mm) |
400-6: 3.5 inches (approx. 89 mm) 400-9: 6.5 inches (approx. 165 mm) |
400-6/400-9 common: 2.4 inches (60 mm) | |
| Adjustment Steps | 0.5 inches (approximately 12.7 mm) | 0.5 inches (approximately 12.7 mm) | 0.47 inches (12 mm) | |
| Main materials | Elevation Department | 6000 series aluminum alloy | 6000 series aluminum alloy | 6000 series aluminum alloy |
| Box section | 6000 series aluminum alloy | 6000 series aluminum alloy | 6000 series aluminum alloy | |
| extension | carbon fiber | carbon fiber | carbon fiber | |
| color | Black, Blue, Red, Gunmetal Silver | Black, Blue, Red, Gunmetal Silver | Black, Blue, Red, Gunmetal Silver | |
| Right/Low | Yes | Yes | Yes | |
| Release date | 2025 | 2022 | 2025 | |
| accessories | Sight soft case No. 10-24 Mount fixing screws Hex wrench 1.5mm/2mm/3mm Sight plate x 1 Sight chart plate x 1 Plank tape Offset bracket |
Sight soft case No. 10-24 Mount fixing screws Hex wrench 1.5mm/2mm/3mm Sight plate x 1 Sight chart plate x 1 Plank tape Offset bracket |
Sight soft case No. 10-24 Mount fixing screws Hex wrench 1.5mm/2mm/3mm Sight plate x 1 Sight chart plate x 8 Blank tape |
|
| Instruction manual *See the website using the QR code | Instruction manual and warranty card |
Instruction manual *See the website using the QR code | ||
| Options (sold separately) | Bridge Lock Extension Set | – | Offset Bracket Bridge Lock Extension Set |
|
Note:
1. Special Color, Size 9″ & LH Sight Available on Only Special Order
2. Shipping Charges are Extra as per Actual Basis
