| RH/LH | LEFT HAND, RIGHT HAND |
|---|---|
| SIZE | 6'', 9'' |
Previous product
Back to products

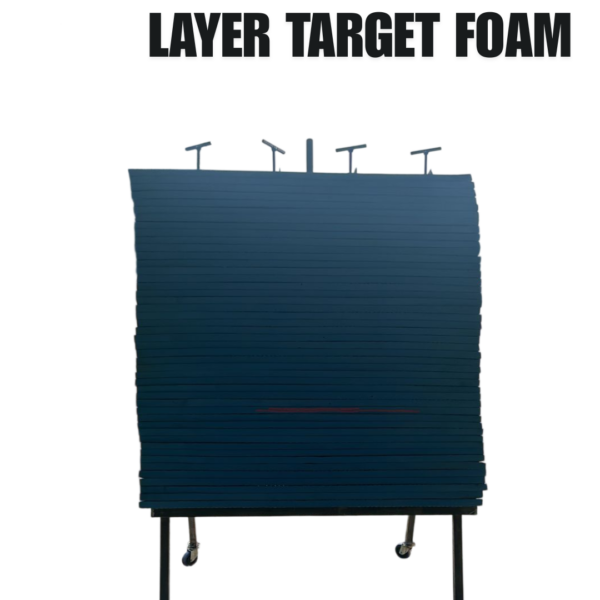

TENRING | LAYER TARGET FOAM
₹18,000.00
Next product
KROSSEN | COMPOUND | BOW BAG
₹6,500.00

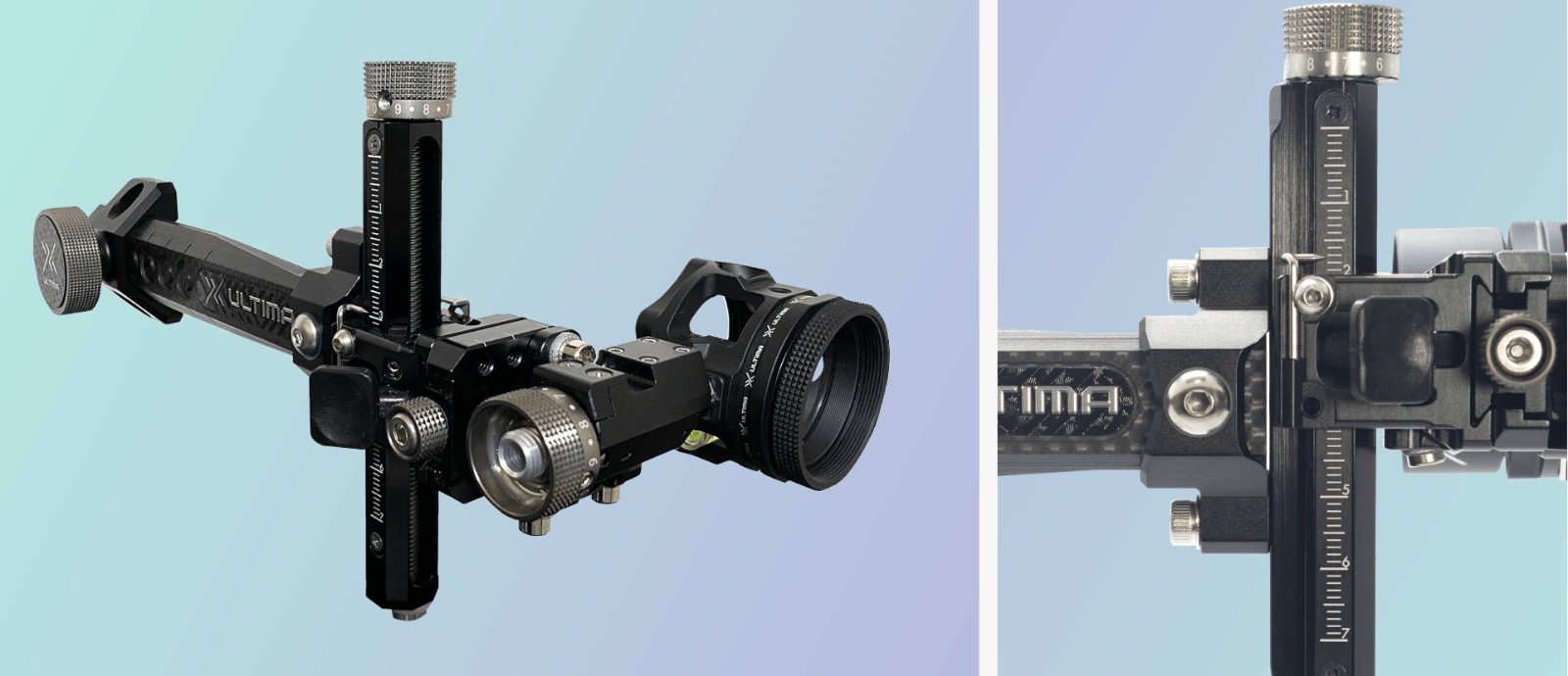

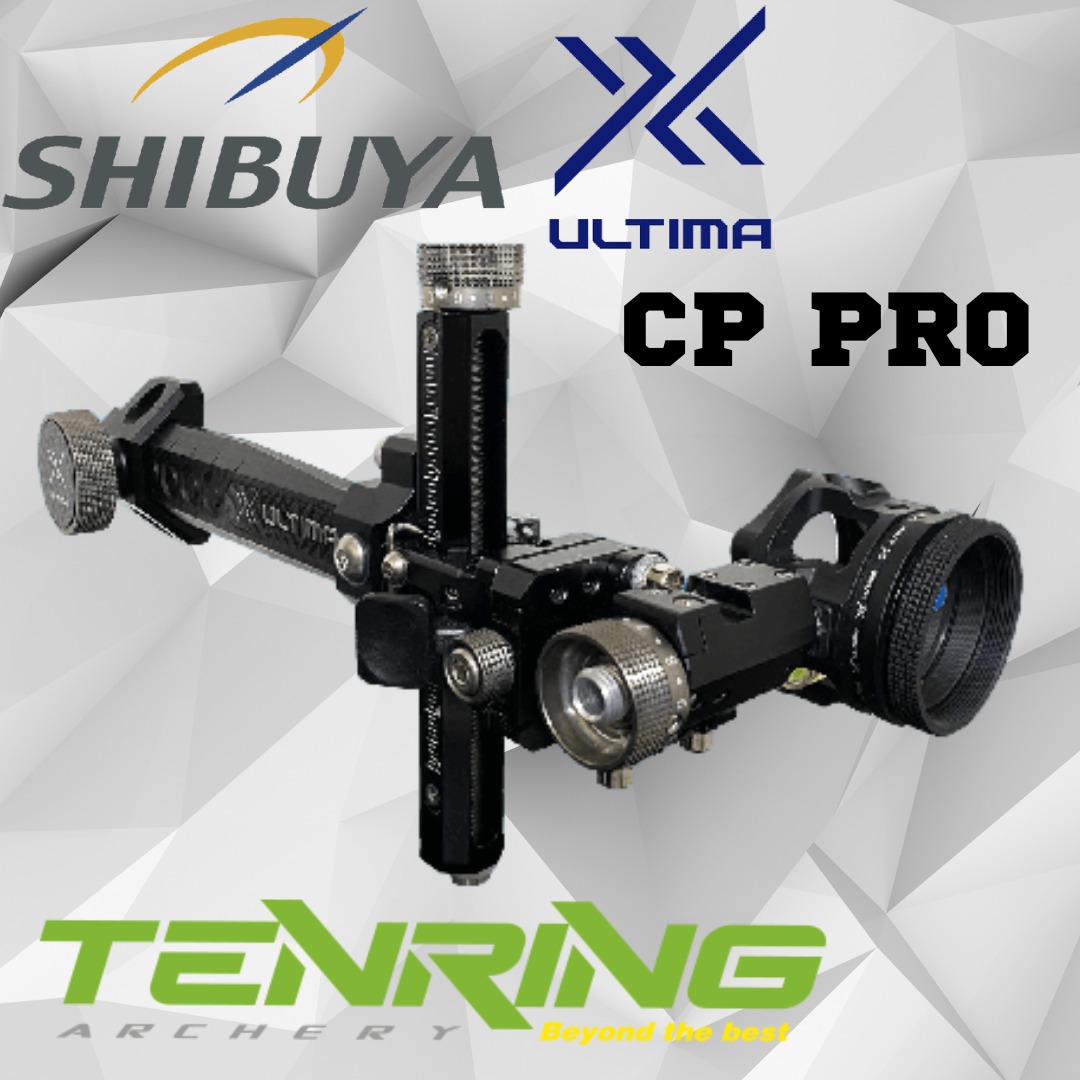

SHIBUYA | ULTIMA CP PRO | COMPOUND BOW SIGHT | COMPOUND SIGHT
₹50,000.00
| Specification | Details |
|---|---|
| Elevation Type | 400 |
| Extension Type | 6″ Carbon / 9″ Carbon |
| Mass Weight | 239g (6″) / 265g (9″) |
| Aperture Distance (APD) | 6″: Max 191mm / Min 131mm |
| 9″: Max 265mm / Min 205mm | |
| Elevation Drive | Screw Drive with No-Lock Quick Adjust |
| Elevation Length | 100mm (Approx. 4″) |
| Elevation Adjustable Range | Approx. 73mm |
| Elevation Adjustment | 1/24″ per revolution (Approx. 1mm) |
| Click Adjustment | 1/480″ per click (Approx. 0.05mm) |
| Tilt Adjustment | Adjustable |
| Windage Range | Approx. 14mm |
| Windage Adjustment | 1/24″ per revolution |
| Windage Click | 1/480″ per click |
| Compatible Scopes | No.10-32 threaded scope rods |
| 2nd / 3rd Axis | Adjustable |
| Extension Length | 157mm (6″) / 225mm (9″) |
| Extension Adjustable Range | 60mm |
| Extension Increment | Approx. 12mm |
| Elevation Material | 6000 Series Aluminum Alloy |
| Windage Unit Material | 6000 Series Aluminum Alloy |
| Extension Material | Carbon Fiber |
| Colors Available | Black, Blue, Red, Gunmetal |
| RH / LH | Available |
| Release Year | 2021 |
| Included Accessories | Soft Sight Case, Mount Screws, Hex Nut, Washers, Hex Wrenches, Sight Scale Plates, Blank Tape |
Note:
1. Special Color, Size 9″ & LH Sight Available on Only Special Order
2. Shipping Charges are Extra as per Actual Basis
Additional information
Related products
SHIBUYA | ULTIMA CPXIII | SIGHT | COMPOUND BOW
FEATURES
SIGHT SCALE PLATES
MAGNIFIER COMPATIBLE
The Scale Magnifier mounts to the flat shelf indicator’s groove, enabling higher precision elevation adjustments than ever.
(sold separately)
ZPE SYSTEM【Patent pending】
ULTIMA CPX sights feature a revolutionary system eliminating backlash and play in the elevation adjustments: the ZPE system. A readjustable aluminum wedge, secured with Nord-Lock® washers, eliminates any gap between the threaded locking block and aperture block.
FLAT SHELF INDICATOR PIN
The new flat-shelf indicator pin on ULTIMA CPX sights is easy to adjust, closer to the sight tape surface than ever before, while still offering enough clearance for layered tapes. Both side pins are locked by a cap screw from the side, preventing accidental movements when locking them down!
TRIA-LOCK SYSTEM
Shibuya’s innovative Tria-Lock system keeps the scope rod approx. 1/2″ closer to the elevation bar than conventional target sights. This significantly reduces moment effected on the windage unit – a significant factor in development of play and faults!
The innovative new Tria-Lock system encloses the scope rod holder from three sides, keeping it perfectly aligned and without play to produce a rattle-free, zero-tolerance environment.
X-Lock System US Pat No. 7,287,335
Re-adjustable, zero-tolerance fit between the windage unit and sight frame. Super-slick and durable polyacetal resin guide spacers enclose the elevation rail, re-adjustable at the turn of a set screw. All parts field-adjustable and -replaceable!
- NOTE:- SHIPPING CHARGES ARE EXTRA AS PER ACTUAL BASIS Prices are Negotiable for Regular customers at many Products. Be our regular Customer.
DECUT | HONOR ACP | COMPOUND SIGHT
Specifications: DECUT composite mini sightBrand: DECUTModel: HONOR-ACPProcess: CNCMaterial: aluminum + stainless steelSurface: anodizedWeight: 160 gSize 212*113*40mm (6 inch extension rod)Accessories: wrench screwColor: black, red, blue, silver,Prices are Negotiable for Regular customers at many Products. Be our regular Customer
Specifications:
DECUT composite mini sight
Brand: DECUT
Model: HONOR-ACP
Process: CNC
Material: aluminum + stainless steel
Surface: anodized
Weight: 160 g
Size 212*113*40mm (6 inch extension rod)
Accessories: wrench screw
Color: black, red, blue, silver,
NOTE:-
SHIPPING CHARGES ARE EXTRA AS PER ACTUAL BASIS
Prices are Negotiable for Regular customers at many Products. Be our regular Customer.
AVALON | TEC X | LONG COMPOUND | SIGHT
DESCRIPTION
Key Features:
- Full aluminum construction
- Lightweight and durable design
- Quick-release vertical adjustment system
- Precise windage and elevation adjustment
- Removable sight block/head
- Compatible with standard 10-32 threaded scopes
- Long 9-inch extension bar
- Available for Right-Hand (RH) and Left-Hand (LH) archers
- Includes protective soft case and adjustment tools
- Available in multiple anodized colors (Black, Blue, Red, Green, Orange, Purple, Grey)
AXCEL | XP PRO 6″ DIAMOND WEAVE CARBON BAR | SIGHT | COMPOUND
NOTE:- SHIPPING CHARGES ARE EXTRA AS PER ACTUAL BASIS Prices are Negotiable for Regular customers at many Products. Be our regular Customer.Achieve XP PRO Compound Features
- ZERO BACKLASH
- SVD (Superior Vibration Dampening) Patent Pending - Designed into the Elevation and Windage GIB Travel Systems that feature all new internal GIBs and GIB- Guideways that squelch vibrations inwardly, and protect the guide surfaces from any dents or scratches for the life of the product. All tension is internally designed to apply pressure forces in the direction of the target for superior accuracy.
- Single Screw Balanced Tension Adjustments - Only tournament sight to offer single screw balanced tension adjustments with lock downs (for zero movement) on both windage and elevation. All adjustments made exert pressure in the direction of the target for maximum accuracy.
- New Diamond Weave ultra high modulus carbon bar - cancels twist/vibrations by 50%
- Wedge lock bow mount bracket is hands down stronger than any other. Features Dual Bridge Technology (patent pending)
- In-line tension adjustment allows the sight pin to stay on target from shot to shot
- Stronger 10-32 windage lead screw
- Enlarged diameter windage and elevation knobs with click locks
- Thinner, weight-reducing elevation rail
- Metal sight tape option for compound models only (8 included, 20 sold separately) Included with sight (Sight Tape #):
- 5-6 | 13-14 | 31-22 | 29-30
- 9-10 | 17-18 | 25-26 | 33-34
The sight tapes are only available in yard measurements
- Diamond Weave Ultra high modulus 6" & 9" bar available for compound sights
DECUT | BASHA ACP | SIGHT | COMPOUND BOW
Description:Brand: DECUTModel: BASHA-ACPProcess: CNCMaterial: AL6061Surface: anodizingWeight: 115gSize: 200*103*38mmCan be used for both left hand and right hand.Bow sight -style RainBow4xScope Lens OR 6x Scope Lens OR 8xScope Lens
BASHA ACP | SIGHT | COMPOUND BOW
Decut Topview Compound bow Scope
- Scope with 6 or 8 x magnification, with a hard wearing light-weight body and anodised finish it looks and performs as well as more expensive products.
- Can be used right or left handed
- Supplied with quality polished lens with central fiber optic pin Fitted with bubble level
- Standard screw diameter 10-32 to fit all modern compound bow sight mounts
- 6 x or 8 x magnification
- Overall weight approx 23gms
SHIBUYA | ULTIMA CPX IV | COMPOUND BOW SIGHT | COMPOUND SIGHT
Extremely rigid and lightweight design. The "gold standard" for 3D and target compound sights.
Product Specification Table
| Model | ULTIMA CPXⅣ | ULTIMA CPX III | ULTIMA CP PRO G2 | |
|---|---|---|---|---|
| Extension bar | 400-6: 6-inch carbon extension 400-9: 9-inch carbon extension | 400-6: 6-inch carbon extension 400-9: 9-inch carbon extension | 400-6: 6-inch polygonal carbon extension 400-9: 9-inch polygonal carbon extension | |
| weight | 400-6: 200g 400-9: 220g | 400-6: 206g 400-9: 225g | 400-6: 240g 400-9: 265g | |
| Aperture Distance (APD) | 400-6: Max. 187mm/Min. 99mm 400-9: Max. 264mm/Min. 99mm | 400-6: Max. 187mm/Min. 99mm 400-9: Max. 264mm/Min. 99mm | 400-6: Max. 191mm/Min. 131mm 400-9: Max. 265mm/Min. 205mm | |
| Elevation | method | Lockdown-less screw drive with jump mechanism | Lockdown-less screw drive with jump mechanism | Lockdown-less screw drive with jump mechanism |
| length | 100mm (approximately 4 inches) | 100mm (approximately 4 inches) | 100mm (approximately 4 inches) | |
| Range of motion | Approximately 73mm | Approximately 73mm | 73mm | |
| Movable step | 1 rotation = 1/32 inch (approximately 0.8 mm) | 1 rotation = 1/24 inch (approximately 1 mm) | 1 rotation = 1/32 inch (approximately 0.8 mm) | |
| 1 click = 1/640 inch (approximately 0.04 mm) | 1 click = 1/480 inch (approximately 0.05 mm) | 1 click = 1/640 inch (approximately 0.04 mm) | ||
| Tilt adjustment | Yes | Yes | Yes | |
| Vintage | Range of motion | Approximately 10mm | Approximately 10mm | 14mm (2nd axis offset +9mm/-7mm also available) |
| Movable step | 1 rotation = 1/32 inch (approximately 0.8 mm) | 1 rotation = 1/24 inch (approximately 1 mm) | 1 rotation = 1/32 inch (approximately 0.8 mm) | |
| 1 click = 1/640 inch (approximately 0.04 mm) | 1 click = 1/480 inch (approximately 0.05 mm) | 1 click = 1/640 inch (approximately 0.04 mm) | ||
| Supported scopes | Screw size No.10-32 | Screw size No.10-32 | Screw size No.10-32 | |
| 2nd and 3rd axis adjustment | Yes | Yes | Yes | |
| extension | length | 400-6: 157mm (approximately 6 inches) 400-9: 233mm (approximately 9 inches) | 400-6: 157mm (approximately 6 inches) 400-9: 233mm (approximately 9 inches) | 400-6: 157mm (approximately 6 inches) 400-9: 225mm (approximately 9 inches) |
| Adjustment Range | 400-6: 3.5 inches (approx. 89 mm) 400-9: 6.5 inches (approx. 165 mm) | 400-6: 3.5 inches (approx. 89 mm) 400-9: 6.5 inches (approx. 165 mm) | 400-6/400-9 common: 2.4 inches (60 mm) | |
| Adjustment Steps | 0.5 inches (approximately 12.7 mm) | 0.5 inches (approximately 12.7 mm) | 0.47 inches (12 mm) | |
| Main materials | Elevation Department | 6000 series aluminum alloy | 6000 series aluminum alloy | 6000 series aluminum alloy |
| Box section | 6000 series aluminum alloy | 6000 series aluminum alloy | 6000 series aluminum alloy | |
| extension | carbon fiber | carbon fiber | carbon fiber | |
| color | Black, Blue, Red, Gunmetal Silver | Black, Blue, Red, Gunmetal Silver | Black, Blue, Red, Gunmetal Silver | |
| Right/Low | Yes | Yes | Yes | |
| Release date | 2025 | 2022 | 2025 | |
| accessories | Sight soft case No. 10-24 Mount fixing screws Hex wrench 1.5mm/2mm/3mm Sight plate x 1 Sight chart plate x 1 Plank tape Offset bracket | Sight soft case No. 10-24 Mount fixing screws Hex wrench 1.5mm/2mm/3mm Sight plate x 1 Sight chart plate x 1 Plank tape Offset bracket | Sight soft case No. 10-24 Mount fixing screws Hex wrench 1.5mm/2mm/3mm Sight plate x 1 Sight chart plate x 8 Blank tape | |
| Instruction manual *See the website using the QR code | Instruction manual and warranty card | Instruction manual *See the website using the QR code | ||
| Options (sold separately) | Bridge Lock Extension Set | - | Offset Bracket Bridge Lock Extension Set | |
Note:
1. Special Color, Size 9" & LH Sight Available on Only Special Order
2. Shipping Charges are Extra as per Actual Basis
SHIBUYA | ULTIMA CP PRO G2 | COMPOUND BOW SIGHT | COMPOUND SIGHT
Spec Table
| Type | 400-6 | 400-9 | |
|---|---|---|---|
| Extension Bar | 6-inch Polygonal Carbon Extension | 9-inch Polygonal Carbon Extension | |
| Weight | 240g | 265g | |
| Aperture Distance (APD) | Max 191mm Min 131mm | Max 265mm Min 205mm | |
| Elevation | Drive System | Lockdown-less Screw Drive with Jump Mechanism | |
| Length | 100mm (approx. 4 inches) | ||
| Travel Range | 73mm | ||
| Movement Step | 1 rotation = 1/32 inch (approx. 0.8mm) | ||
| 1 click = 1/640 inch (approx. 0.04mm) | |||
| Tilt Adjustment | Yes | ||
| Windage | Travel Range | 14mm (with additional 2nd axis offset of +9mm / -7mm) | |
| Movement Step | 1 rotation = 1/32 inch (approx. 0.8mm) | ||
| 1 click = 1/640 inch (approx. 0.04mm) | |||
| Compatible Scope | Thread Size No.10-32 | ||
| 2nd & 3rd Axis Adjustment | Yes | ||
| Extension | Length | 157mm (approx. 6 inches) | 225mm (approx. 9 inches) |
| Adjustment Range | 2.4 inches (60mm) | ||
| Adjustment Step | 0.47 inch (12mm) | ||
| Main Materials | Elevation Section | 6000-Series Aluminum Alloy | |
| Box Section | 6000-Series Aluminum Alloy | ||
| Extension | Carbon Fiber | ||
| Color | Black, Blue, Red, Gunmetal Silver | ||
| RH/LH | Available | ||
| Release | 2025 | ||
| Included Accessories | Soft Case for Sight No.10-24 Mounting Screw Hex Wrench (1.5mm / 2mm / 3mm) Sight Plate ×1 Sight Chart Plate ×8 Blank Tape | ||
| Optional (Sold Separately) | Offset Bracket Bridge Lock Extension set | ||
Note:
1. Special Color, Size 9" & LH Sight Available on Only Special Order
2. Shipping Charges are Extra as per Actual Basis
CARTEL | MIDAS CARBON | COMPOUND SIGHT
The Cartel Midas carbon model is a light sight with a 6" extension arm that attaches to an long sight bar. This sight has a micro adjustable windage and distance system. Comes with a 10/32 sight pin and is available in black. This is a good sight at a modest price.
1) Features
With lightweight construction, Midas Carbon Sight is a top end sight at a moderate price.
Micro adjustment features for both horizontal & vertical movement and 10 clicks per
full revolution for horizontal movements.
Major vertical adjustments are made quickly with quick release lever.
Sight block has quick release feature and extra blocks are also sold separately.
2) Specification
Material
Frame: Aluminum / Extension: Carbon
Vertical frame
5.5 inch
Extension
6 inch
Sight pin thread
10-32 or 8-32
Color
Black
NOTE:-
SHIPPING CHARGES ARE EXTRA AS PER ACTUAL BASIS
Prices are Negotiable for Regular customers at many Products. Be our regular Customer.
