AXCEL | ACHIEVE UHM XP CARBON | RECURVE’S | SIGHTS
Xtra Performance Compound Features
- New ultra high modulus carbon bar, 2x stronger, contains thicker layers of carbon
- New wedge lock bow mount bracket is hands down stronger than any other (patent pending)
- In-line tension adjustment allows the sight pin to stay on target from shot to shot
- Stronger 10-32 windage lead screw
- Enlarged diameter windage and elevation knobs with click locks
- Thinner, weight-reducing elevation rail
- Metal sight tape option for compound models only (8 included, 20 sold separately)
Included with sight (Sight Tape #):
- 5-6Â Â | 13-14 | 31-22 | 29-30
- 9-10 | 17-18 | 25-26 | 33-34
- Ultra high modulus 6" & 9" bar available for compound sight

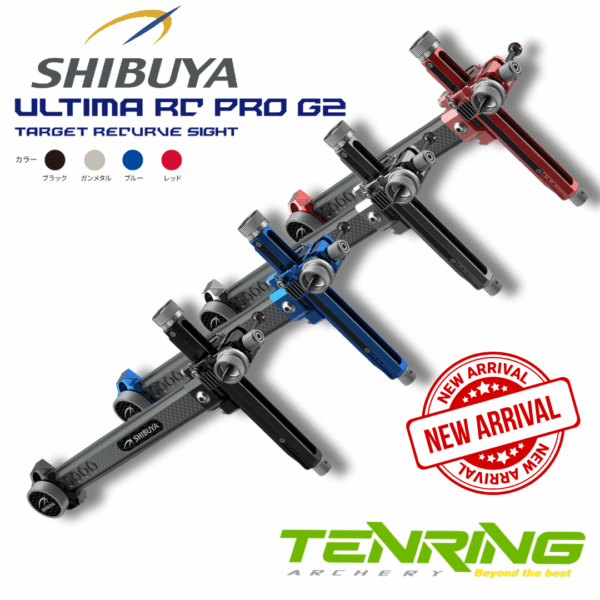

SHIBUYA | ULTIMA RC PRO G2 | RECURVE BOW SIGHT | RECURVE SIGHT
Spec Table
Weight |
520-9: 236g (including sight pin)250-9: 233g (including sight pin) |
||
|---|---|---|---|
Aperture Distance (APD) |
Max 249mm / Min 83mm |
||
Elevation |
Drive System |
Lockdown-less Screw Drive with Jump Mechanism |
|
Length |
520-9: 132mm (approx. 5.2 inches)250-9: 63.5mm (approx. 2.5 inches) |
||
Travel Range |
520-9: approx. 107mm250-9: 41.9mm |
||
Movement Step |
1 rotation = 1/32 inch (approx. 0.8mm) |
||
1 click = 1/640 inch (approx. 0.04mm) |
|||
Tilt Adjustment |
Yes |
||
Windage |
Travel Range |
5.4mm |
|
Movement Step |
1 rotation = 1/32 inch (approx. 0.8mm) |
||
1 click = 1/640 inch (approx. 0.04mm) |
|||
Compatible Sight Pin |
Thread Size No.8-32 |
||
Extension |
Length |
233mm (approx. 9 inches) |
|
Adjustment Range |
2.4 inches (60mm) |
||
Adjustment Step |
0.5 inch (12.7mm) |
||
Main Materials |
Elevation Section |
6000-Series Aluminum Alloy |
|
Box Section |
6000-Series Aluminum Alloy |
||
Extension |
Carbon Fiber |
||
Color |
Black, Gunmetal, Blue, Red |
||
RH/LH |
Available |
||
Release |
2025 |
||
Included Accessories |
Soft Case for SightNo.10-24 Mounting ScrewHex Wrench (1.5mm / 2.5mm / 3mm)Blank Tape |
||
Instruction Manual |
|||
Note:
1. Special Color or LH Sight Available on Only Special OrderÂ
2. Shipping Charges are Extra as per Actual Basis
AXCEL | ACHIEVE CARBON | COMPOUND’S | SIGHTS
Description
This bow sight is an excellent choice for the Olympic recurve archer looking for the ultimate in precision performance. It's got every adjustment possible, and, once it's set, it can be locked into place so it stays consistent from shot to shot. Ultra-High Modulus carbon bar is 2 times stronger and has a higher weight to strength ratio as compared to similar models. A superior "Windage Dovetail Guide System" replaces inferior twin-dowel guide systems and provides zero backlash
Features:
- Lightweight, durable and dependable
- Wedge Lock mounting system provides a strong, and precise mount that clicks into place
- Features the "VTS" (Variable Tension System) providing an adjustment where the archer personally chooses a desired elevation travel tension setting
- Wedge Lock mounting system provides a strong, and precise mount that clicks into place
- Elevation and windage locks ensure your sight doesn't move when the lock is engaged
- Removable quick change block for easy aperture changes with 8-32 thread pitch (aperture not included)
- Bar Construction: Ultra-High Modulus Carbon
- Elevation Adjustment: 4 1/4"
- Weight: 8.2 oz

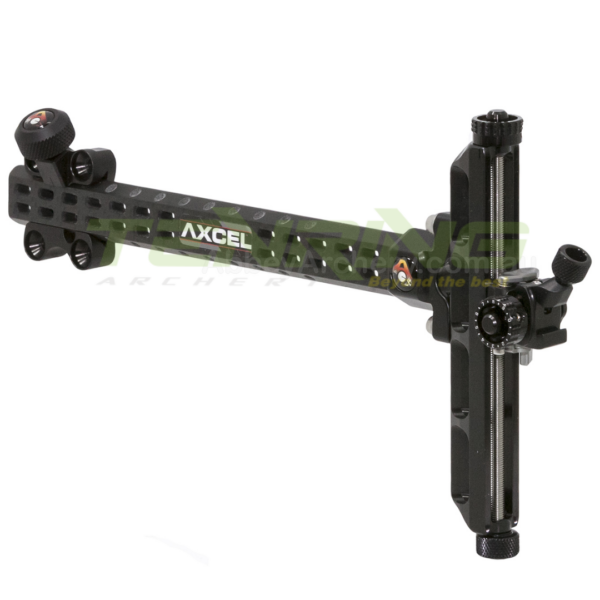

AXCEL | ACHIEVE CARBON | RECURVE SIGHTS
Specifications:Â Â Â Â Â Â
The very popular Achieve RXL 9 inch Carbon Bar without damper tournament recurve sight by Axcel with added features, designed specifically for Olympic style recurve bows.
The Achieve Carbon Bar recurve sight contains a superior Windage Dovetail Guide System, replacing inferior twin-dowel guide systems.
The RXL includes the Variable Tension System or VTS provides a new adjustment system where the archer personally chooses a desired elevation travel tension setting.
Achieve RXL is also available in a 9 inch aluminium extension bar which is sold separately.
The RXL provides 4.375 inches of elevation adjustment and is among the lightest, most durable all aluminium target sights on the market.
If you need some help levelling your Axcel Achieve Sight on your bow, this instructional video will help you learn one of many methods of levelling your sight on your bow to achieve the highest accuracy for every shot. Level your first, second and third axis settings easily by viewing this video.
Comes in a durable, lock down sight carrying case with snapping latches and egg crate, high density, closed cell foam padding in the lid and base of the interior of the case to sandwich your sight for worry free transportation. Made of tough, extra thick, black colour polypropylene and is lockable. The two piece handle prevents inadvertent opening. Outer dimensions are 33cm x 24cm x 9cm or 13" x 9.5" x 3.5". Great for transporting and safely storing your sight and protects as no other case can.
-
- Improved knobs for added grip
- Designed specifically for Olympic style recurve bows
- Superior Windage Dovetail Guide System replaces inferior twin-dowel guide systems
- VTS provides an adjustment where the archer personally chooses a desired elevation travel tension setting
- Added lock feature most commonly used in single distance tournaments ensures block is secure
- Ultra fine micro adjustment in both horizontal and vertical movements
- 9 inch extension bar
- 4.375 inches elevation or vertical adjustment
- 8-32 sight pin thread. Sight pin is not included
- Comes with 12 page fully illustrated technical manual, decal, patch, two sight tapes, mounting screws, Allen wrench and hard shell sight case
- One of the lightest, most durable carbon target sights on the market
- Top level tournament recurve sight
- Available in black or silver colours. Please specify colour choice. Also comes in Black/Silver, Green/Black, Green/Silver, Blue/Black, Blue/Silver, Orange/Black, Orange/Silver, Red/Black, Red/Silver, Silver/Black, Silver/Silver, Teal/Black, Teal/Silver, Purple/Black, Purple/Silver, Brown/Black and Brown/Silver which are not stocked items but can be special ordered. Please enquire
- Comes in Right Hand and Left Hand. Please specify RH or LH
- Extension bar is made from eye appealing carbon
- Shipping charges are extra as per basis
- Specific colours would be avaliable on speacial order
- Prices are Negotiable for Regular customers at many Products. Be our regular Customer.Â

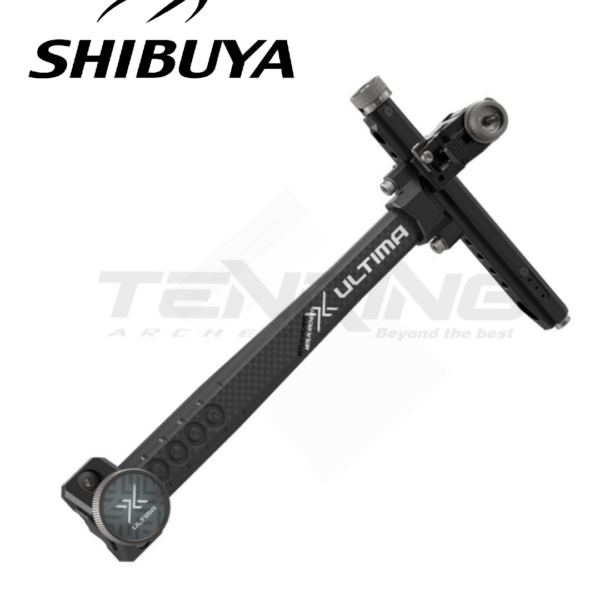

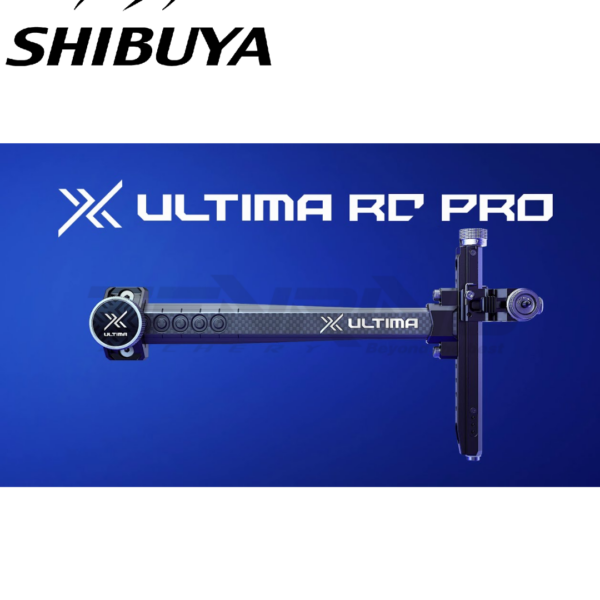

SHIBUYA | ULTIMA RC PRO | RECURVE’S SIGHT
SHIBUYA ULTIMA RC PRO features
- The Ultima RC PRO is the newest member of Shibuya's Ultima family.
- The extension bar is made of carbon and most of the other parts are made of light and strong aluminium.
- Attractive, modern polygonal extension bar design for even better damping and vibration control.
- The vertical threaded rod is suspended in a damped manner to prevent vibrations and noise.
- Sight block is guided over two diagonally mounted surfaces with plastic glides, thus no play between sight carriage and vertical bar.
- Large knob for quick adjustment or removal of the sight block.
- The quick adjustment screw has a larger contact surface to the extension bar and thus ensures that the extension bar is fixed even more securely.

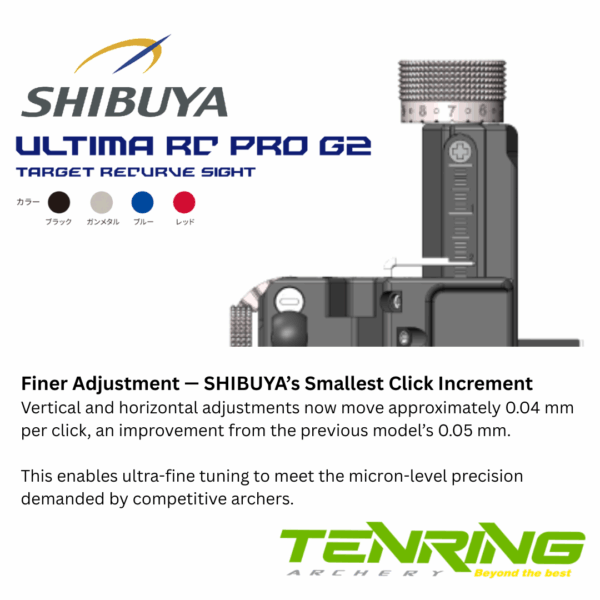

- Fine adjustment of the vertical axis 1/480" (0.05 mm) per click.
- Fine adjustment of the horizontal axis 1/640" (0.04 mm) per click.
- There is a metal scale on both sides of the adjustment rail. One has a standard scale, the other is blank and can be labeled by you.
- The locking screw of the lateral coarse adjustment has been replaced by a thumb screw and can thus be loosened by hand.

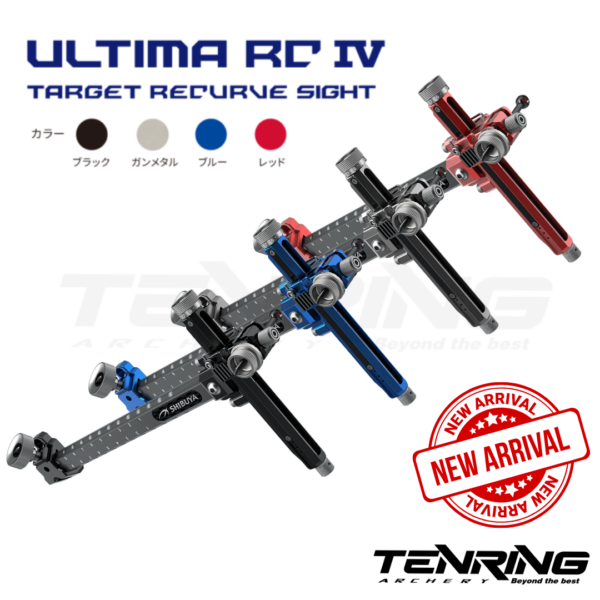

SHIBUYA | ULTIMA RC IV | RECURVE BOW SIGHT | RECURVE SIGHT
Product Specification Table
| Model | ULTIMA RCâ…£ | ULTIMA RC III | ULTIMA RC PRO G2 520-9 | |
|---|---|---|---|---|
| weight | 215g | 211g | 236g *including sight pin | |
| Aperture Distance (APD) | Maximum 249mm Minimum 83mm | Maximum 249mm Minimum 83mm | Maximum 249mm Minimum 83mm | |
| Elevation | method | Lockdown-less screw drive with jump mechanism | Lockdown-less screw drive with jump mechanism | Lockdown-less screw drive with jump mechanism |
| length | 132mm (approximately 5.2 inches) | 132mm (approximately 5.2 inches) | 132mm (approximately 5.2 inches) | |
| Range of motion | Approximately 107mm | Approximately 107mm | Approximately 107mm | |
| Movable step | 1 rotation = 1/32 inch (approximately 0.8 mm) | 1 rotation = 1/24 inch (approximately 1 mm) | 1 rotation = 1/32 inch (approximately 0.8 mm) | |
| 1 click = 1/640 inch (approximately 0.04 mm) | 1 click = 1/480 inch (approximately 0.05 mm) | 1 click = 1/640 inch (approximately 0.04 mm) | ||
| Tilt adjustment | Yes | Yes | Yes | |
| Vintage | Range of motion | 5.4mm | 5.4mm | 5.4mm |
| Movable step | 1 rotation = 1/32 inch (approximately 0.8 mm) | 1 rotation = 1/32 inch (approximately 0.8 mm) | 1 rotation = 1/32 inch (approximately 0.8 mm) | |
| 1 click = 1/640 inch (approximately 0.04 mm) | 1 click = 1/640 inch (approximately 0.04 mm) | 1 click = 1/640 inch (approximately 0.04 mm) | ||
| Compatible site pins | Screw size No.8-32 | Screw size No.8-32 | Screw size No.8-32 | |
| extension | length | 233mm (approximately 9 inches) | 233mm (approximately 9 inches) | 233mm (approximately 9 inches) |
| Adjustment Range | 6.5 inches (approx. 165 mm) | 6.5 inches (approx. 165 mm) | 2.4 inches (60 mm) | |
| Adjustment Steps | 0.5 inches (12.7 mm) | 0.5 inches (approximately 12.7 mm) | 0.47 inches (12 mm) | |
| Main materials | Elevation Department | 6000 series aluminum alloy | 6000 series aluminum alloy | 6000 series aluminum alloy |
| Box section | 6000 series aluminum alloy | 6000 series aluminum alloy | 6000 series aluminum alloy | |
| extension | carbon fiber | carbon fiber | carbon fiber | |
| color | Black, Gunmetal, Blue, Red | Black, Gunmetal, Blue, Red | Black, Gunmetal, Blue, Red | |
| Right/Low | Yes | Yes | Yes | |
| Release date | 2025 | 2022 | 2025 | |
| accessories | Sight soft case No. 10-24 Mount fixing screw Hexagonal wrench 1.5mm / 2.5mm / 3mm Blank tape | Sight soft case No. 10-24 Mount fixing screw Hexagonal wrench 1.5mm / 2.5mm / 3mm Blank tape | Sight soft case No. 10-24 Mount fixing screw Hexagonal wrench 1.5mm / 2.5mm / 3mm Blank tape | |
| Instruction manual *See the website via the QR code | Instruction manual Warranty card Parts diagram | Instruction manual *See the website via the QR code | ||
Note :Â
1. Special color & LH Sight available on only Special OrderÂ
2. Shipping Charges are extra as per actual BasisÂ

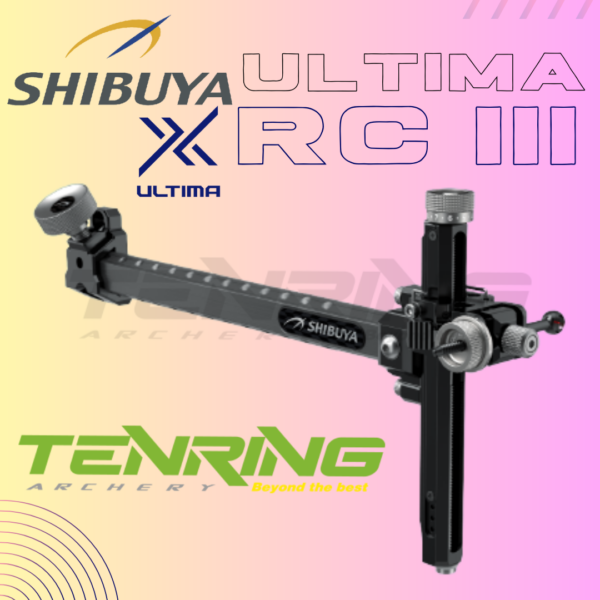

SHIBUYA | ULTIMA RC III | SIGHT | RECURVE BOW
SHIBUYA ULTIMA RCâ…¢
A new chapter in the history of the world’s most popular Target Recurve Sight.
The brand new ULTIMA RCIII Target Recurve Sight combines the proven features of the ULTIMA RCII and ULTIMA RC PRO sights to deliver a premium, yet affordable competition package.
FEATURES
Reduced mass weight and fine-tuned weight distribution
Â
Redesigned Sight Pin Locker
Sight Scale Plates
Ambidextrous Mount
Pressure-insert drive shaft dampening system
Improving on the original ULTIMA RC’s drive shaft support, the new dampening system, increasing contact area to avoid unwanted vibrations and sound upon the shot.
As a result, the ULTIMA RCÂ is the quietest, most consistent sight SHIBUYA has ever built!

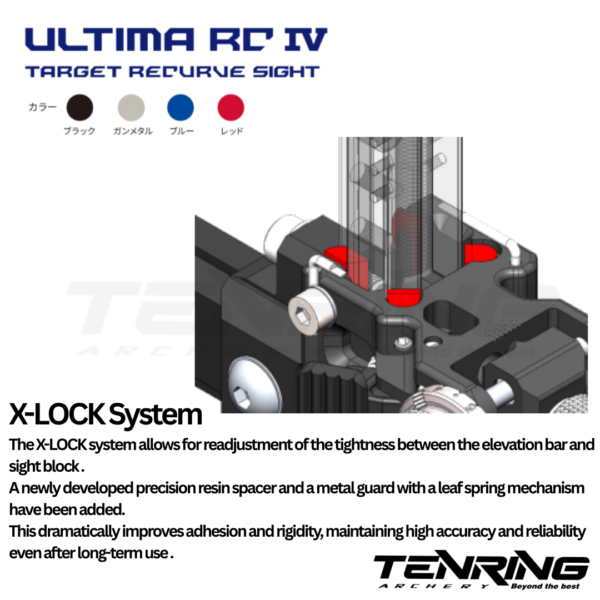

X-Lock System US Pat No. 7,287,335
Re-adjustable, zero-tolerance fit between the windage unit and sight frame. Super-slick and durable polyacetal resin guide spacers enclose the elevation rail, re-adjustable at the turn of a set screw. All parts field-adjustable and -replaceable!
New, maximum grip dial finish
ULTIMA RCÂ sights feature completely reworked dials and mounting knobs, making every adjustment delightful and enabling the user to securely tighten the mounting knob more easily and securely than ever!
Easy and reliable fine adjustments
One of the most common requests we have had is a windage fine adjustment scale. The ULTIMA RCÂ sight now features a laser-engraved sight scale to make fine adjustments easier and reliable than ever!
NOTE:
SHIPPING CHARGES ARE EXTRA AS PER ACTUAL BASIS
SPECIFIC COLOR WOULD BE AVAILABLE ON SPECIAL ORDER
Prices are Negotiable for Regular customers at many Products. Be our regular Customer
WIN&WIN | WIAWIS | WS 700 CARBON RECURVE SIGHTS
Specifications:
WS700 is Win & Win’s brand new precision-machined competition sight, the evolution of the WS600 series.
It has wheel tuners to accurately measure fine sight movements and a slide bar for convenient and smooth vertical adjustment. A unique bolt system securely locks the sight in place.
The exclusive Graphene Foam Core technology inside its carbon extension bar protects the WS700 from damaging vibration that travels through a bow when it is shot. It also keeps weight to a minimum and prevents torque during shooting.
Never compromise your aim. Choose the trust worthy, sturdy and secure WS700 sight from Win & Win.
FEATURES:
- Lightweight
- Precision adjustments
- Unique secure locking system
- Graphene Foam Core technology
- 8/32 sight pin thread
- Weight: 207g
- Colour : Black, Red, Silver, Blue

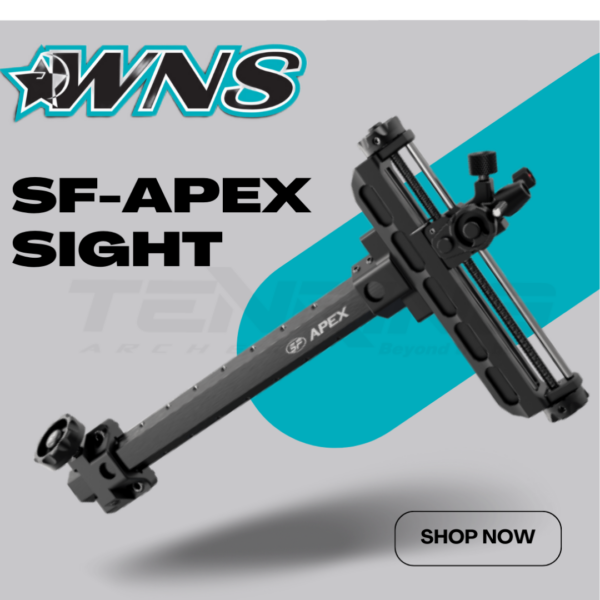

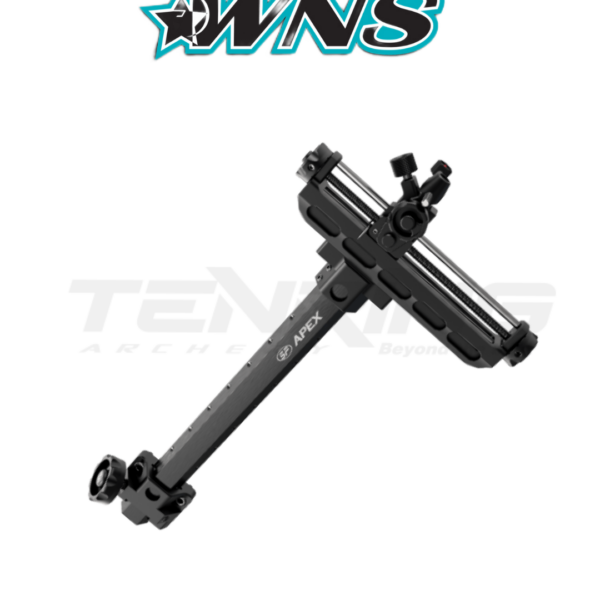

WNS | SF – APEX | CARBON SIGHT | SIGHT
APEX Carbon Sight utilizes an extension bar which combines nano-carbon and special form cores to reduce shock more effectively. Sophisticated design along with precisely processed click-type adjustment system enables quick, fine control with better accuracy.
APEX SIGHT
APEX Carbon Sight utilizes an extension bar which combines nano-carbon and special form cores to reduce shock more effectively. Sophisticated design along with precisely processed click-type adjustment system enables quick, fine control with better accuracy.
DESCRIPTION
Limited inventory, available while supplies last
Special pricing on this item is available online only
APEX Carbon Sight utilizes an extension bar which combines nano-carbon and special form cores to reduce shock more effectively. Sophisticated design along with precisely processed click-type adjustment system enables quick, fine control with better accuracy.
- RH only
SANLIDA | X10 COMPOUND SIGHT 9″ & 6″ BOTH SIZE
SANLIDA X10 Extension - 6 or 9 inch - Sight
The SANLIDA X10 sight is equipped with a 6 or 9 inch carbon extension. The visor body itself is made of CNC machined 6061 aluminum components. The entire sight is designed for accuracy and lightness. The precise construction and clear scales ensure quick vertical and horizontal adjustability. Included are two sight dampers that can be screwed into the vertical adjustment rail, where they eliminate noise and vibration directly on the sight.
NOTE:
SHIPPING CHARGES ARE EXTRA AS PER ACTUAL BASIS
Prices are Negotiable for Regular customers at many Products. Be our regular Customer
SANLIDA | X10 RECURVE SIGHT 9″
*Two sight dampers included
*The main body machined from the 6061 aluminum
*Quick vertical and orizontal
NOTE:
SHIPPING CHARGES ARE EXTRA AS PER ACTUAL BASIS
Prices are Negotiable for Regular customers at many Products. Be our regular Customer

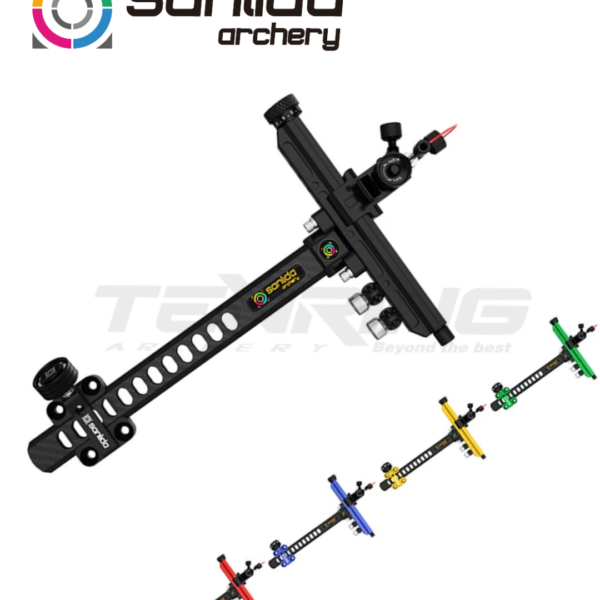

SANLIDA | X 10 | RECURVE SIGHT
Specifications:Â Â Â Â Â Â Â Â Â Â Â Â
The X10 sight from Sanlida available in 9in carbon extension.
The main body is machined from 6061 grade aluminium. The Sanlida X10 Recurve Sight features a precisely engineered shape and design for quick vertical and horizontal adjustments with clear scale indications for ease of use and reduces errors.
SPECIFICATIONS:
- Target sight for use with recurve bows
- Accepts any 8-32 threaded scope
- Materials: Carbon extension arm / 6061 aluminium body and components
- Extension length: 9 inches
- RH model only
- Colours: Black, Blue, Gold, Green, Red
