WIAWIS | ATF-EX | 25''/27'' | RISER | RECURVE BOW (SINGLE COLOR)
Price range: ₹83,200.00 through ₹92,000.00

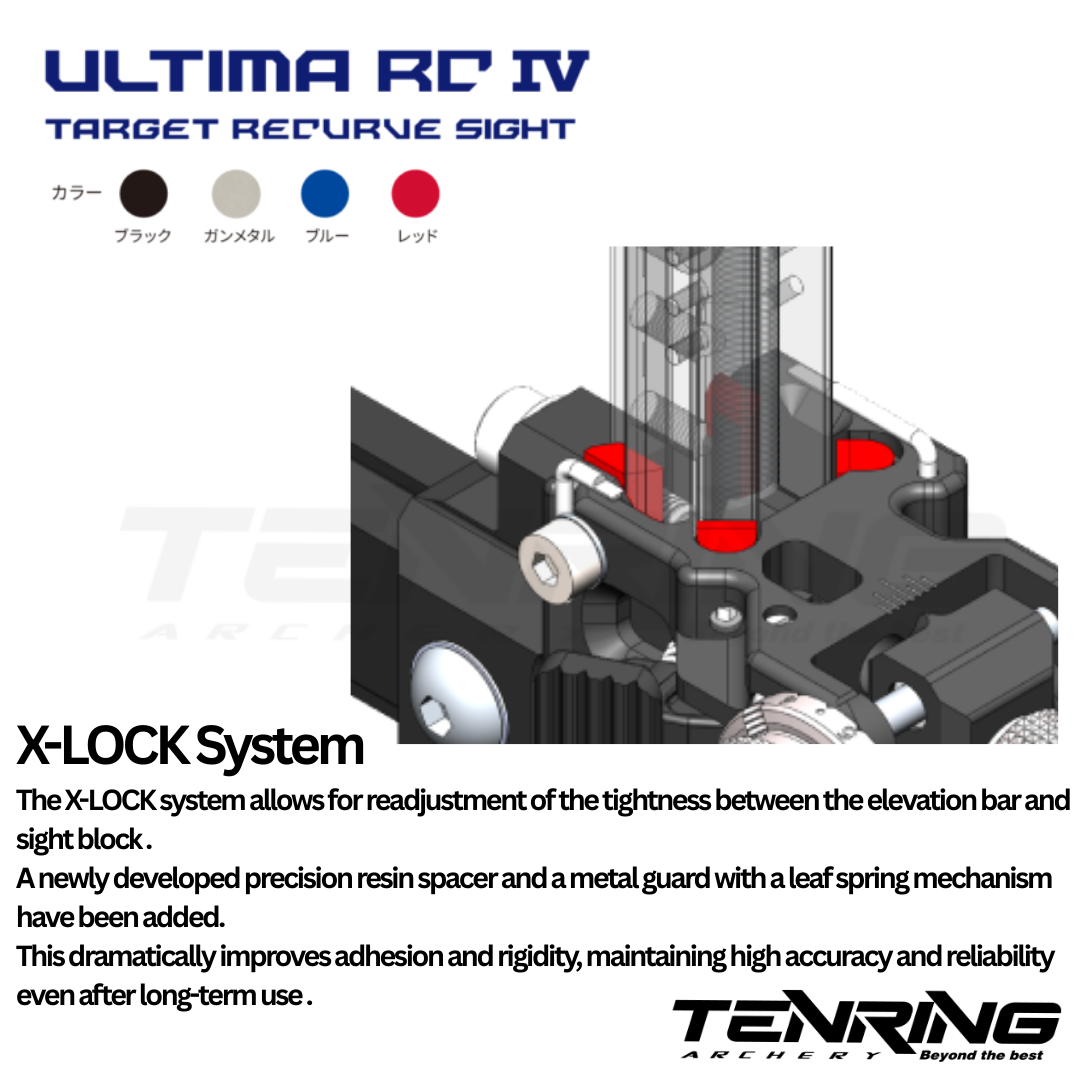

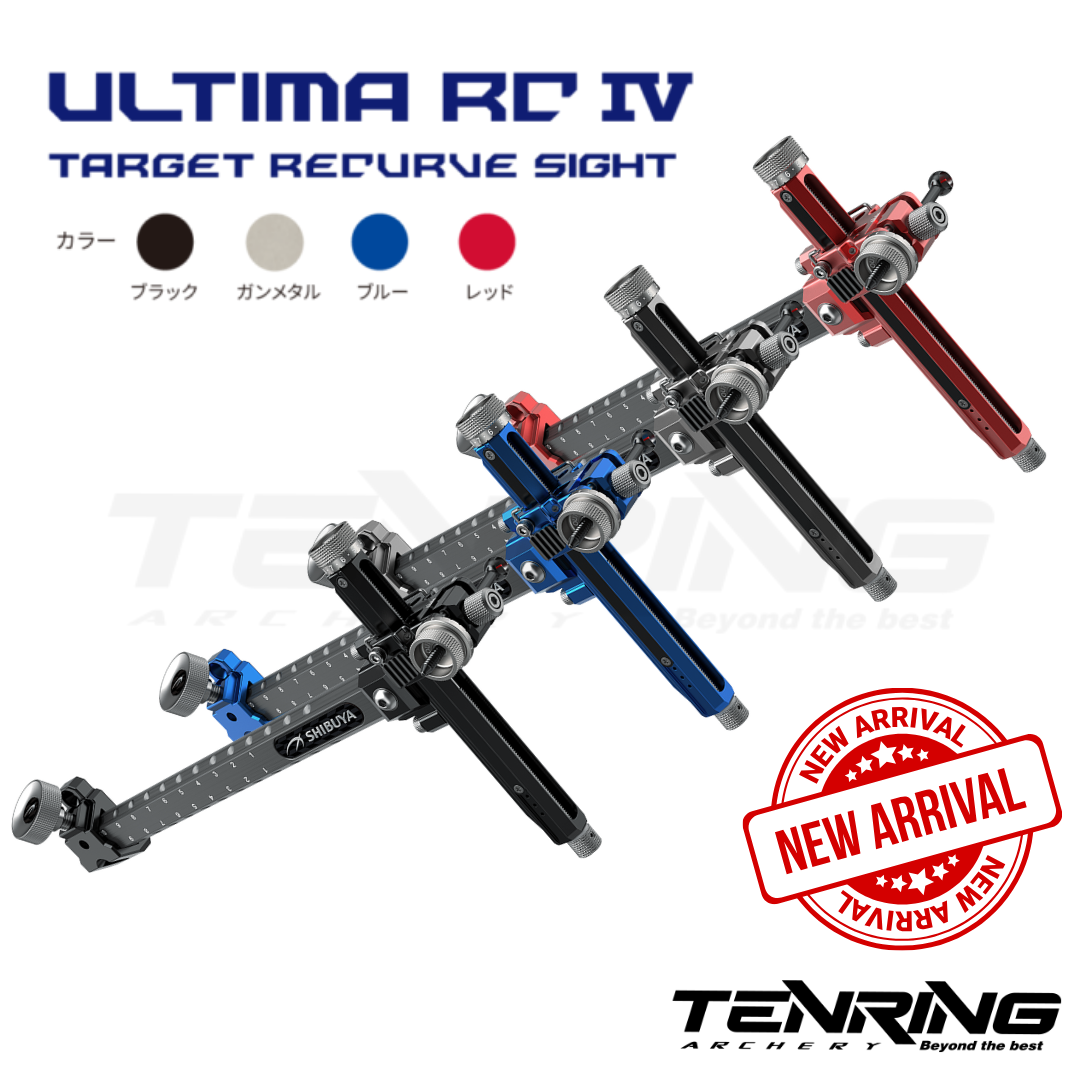

SHIBUYA | ULTIMA RC IV | RECURVE BOW SIGHT | RECURVE SIGHT
₹32,000.00
Product Specification Table
| Model | ULTIMA RCâ…£ | ULTIMA RC III | ULTIMA RC PRO G2 520-9 | |
|---|---|---|---|---|
| weight | 215g | 211g | 236g *including sight pin | |
| Aperture Distance (APD) | Maximum 249mm Minimum 83mm | Maximum 249mm Minimum 83mm | Maximum 249mm Minimum 83mm | |
| Elevation | method | Lockdown-less screw drive with jump mechanism | Lockdown-less screw drive with jump mechanism | Lockdown-less screw drive with jump mechanism |
| length | 132mm (approximately 5.2 inches) | 132mm (approximately 5.2 inches) | 132mm (approximately 5.2 inches) | |
| Range of motion | Approximately 107mm | Approximately 107mm | Approximately 107mm | |
| Movable step | 1 rotation = 1/32 inch (approximately 0.8 mm) | 1 rotation = 1/24 inch (approximately 1 mm) | 1 rotation = 1/32 inch (approximately 0.8 mm) | |
| 1 click = 1/640 inch (approximately 0.04 mm) | 1 click = 1/480 inch (approximately 0.05 mm) | 1 click = 1/640 inch (approximately 0.04 mm) | ||
| Tilt adjustment | Yes | Yes | Yes | |
| Vintage | Range of motion | 5.4mm | 5.4mm | 5.4mm |
| Movable step | 1 rotation = 1/32 inch (approximately 0.8 mm) | 1 rotation = 1/32 inch (approximately 0.8 mm) | 1 rotation = 1/32 inch (approximately 0.8 mm) | |
| 1 click = 1/640 inch (approximately 0.04 mm) | 1 click = 1/640 inch (approximately 0.04 mm) | 1 click = 1/640 inch (approximately 0.04 mm) | ||
| Compatible site pins | Screw size No.8-32 | Screw size No.8-32 | Screw size No.8-32 | |
| extension | length | 233mm (approximately 9 inches) | 233mm (approximately 9 inches) | 233mm (approximately 9 inches) |
| Adjustment Range | 6.5 inches (approx. 165 mm) | 6.5 inches (approx. 165 mm) | 2.4 inches (60 mm) | |
| Adjustment Steps | 0.5 inches (12.7 mm) | 0.5 inches (approximately 12.7 mm) | 0.47 inches (12 mm) | |
| Main materials | Elevation Department | 6000 series aluminum alloy | 6000 series aluminum alloy | 6000 series aluminum alloy |
| Box section | 6000 series aluminum alloy | 6000 series aluminum alloy | 6000 series aluminum alloy | |
| extension | carbon fiber | carbon fiber | carbon fiber | |
| color | Black, Gunmetal, Blue, Red | Black, Gunmetal, Blue, Red | Black, Gunmetal, Blue, Red | |
| Right/Low | Yes | Yes | Yes | |
| Release date | 2025 | 2022 | 2025 | |
| accessories | Sight soft case No. 10-24 Mount fixing screw Hexagonal wrench 1.5mm / 2.5mm / 3mm Blank tape |
Sight soft case No. 10-24 Mount fixing screw Hexagonal wrench 1.5mm / 2.5mm / 3mm Blank tape |
Sight soft case No. 10-24 Mount fixing screw Hexagonal wrench 1.5mm / 2.5mm / 3mm Blank tape |
|
| Instruction manual *See the website via the QR code | Instruction manual Warranty card Parts diagram |
Instruction manual *See the website via the QR code | ||
Note :Â
1. Special color & LH Sight available on only Special OrderÂ
2. Shipping Charges are extra as per actual BasisÂ
