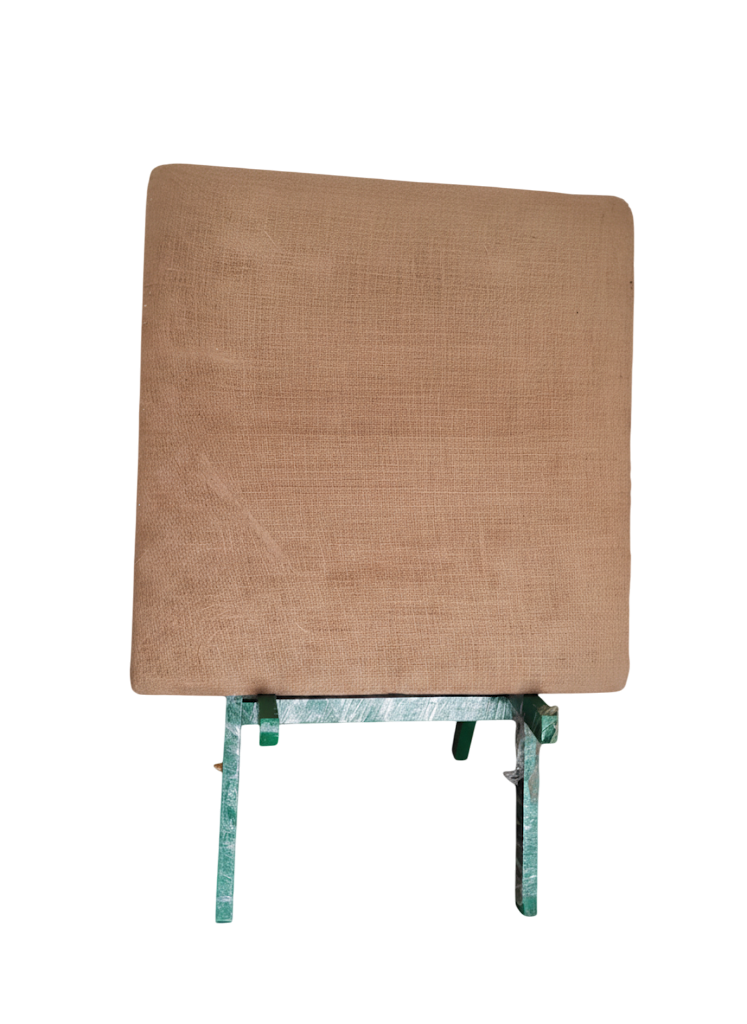

ARCHERY TARGET BUTTRESS MATT WITH STAND | TARGET | GROUND EQUIPMENTS
₹9,200.00
Target Buttress and Stand Specifications
This specification is based on typical archery equipment for competition and practice.

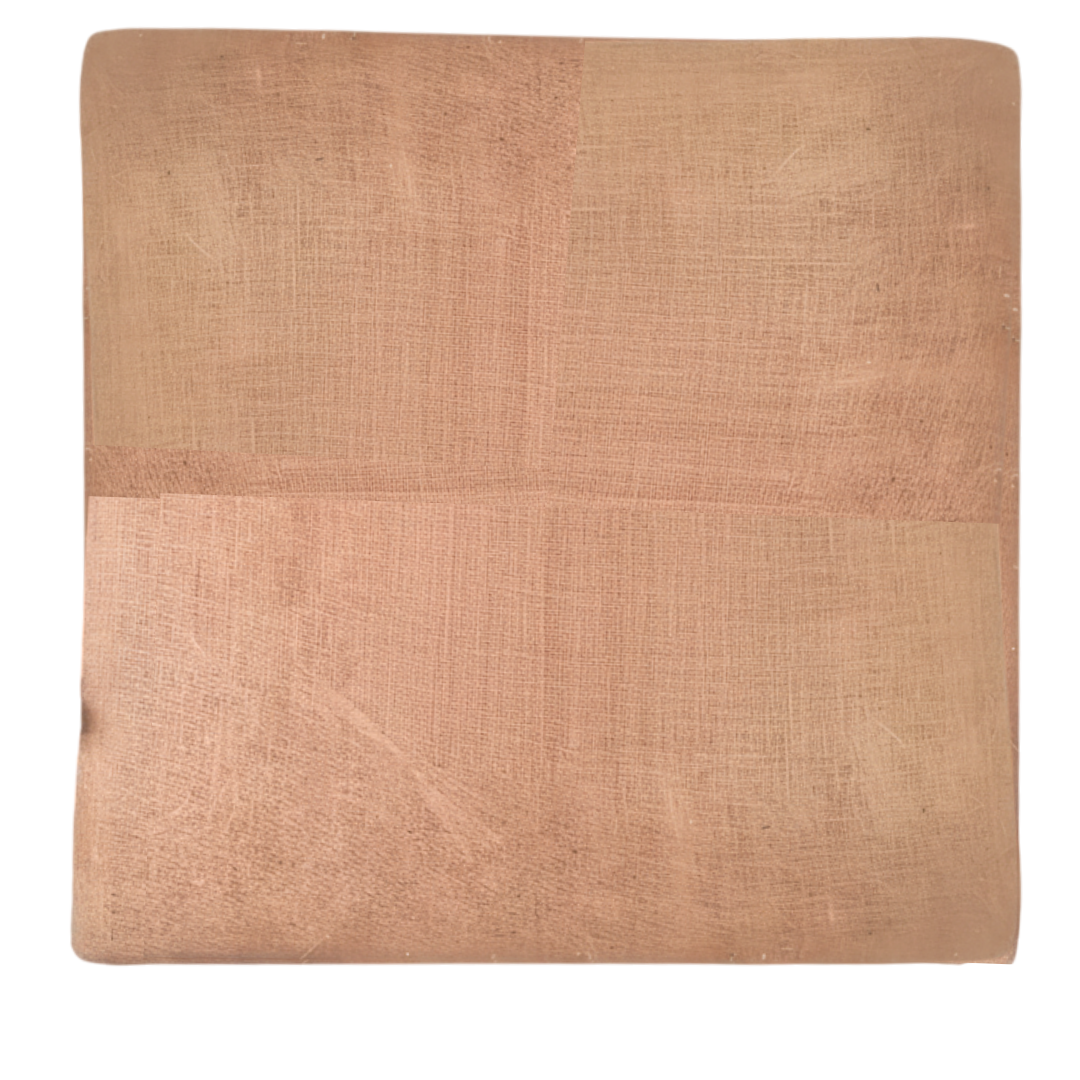

1. Target Buttress Specifications
| Feature | Specification | Notes |
| Type | Compressed Straw or Woven Polypropylene Block | Material affects durability, stopping power, and arrow removal. |
| Shape | Square (for block/foam) or Round (for straw bosses) | The image suggests a rectangular/square profile. |
| Size (Common Archery) | 122 cm x 122 cm (approx. 48″ x 48″) | Standard for FITA/World Archery competition. |
| Thickness | 15 cm to 40 cm (approx. 6″ to 16″) | Varies based on bow type (Indian, Recurve, Compound) and stopping power required. Thicker for higher power. |
| Layers (if applicable) | 2 layers (Indian Round), 3 layers (Recurve), 4 layers (Compound) | For straw or layered targets. |
| Covering | Durable outer cover (e.g., burlap, woven material) | To hold the compressed material together and protect from elements. |
| Compatibility | Must be compatible with standard Target Faces (e.g., 122 cm, 80 cm, 60 cm). | Secured with face pins. |

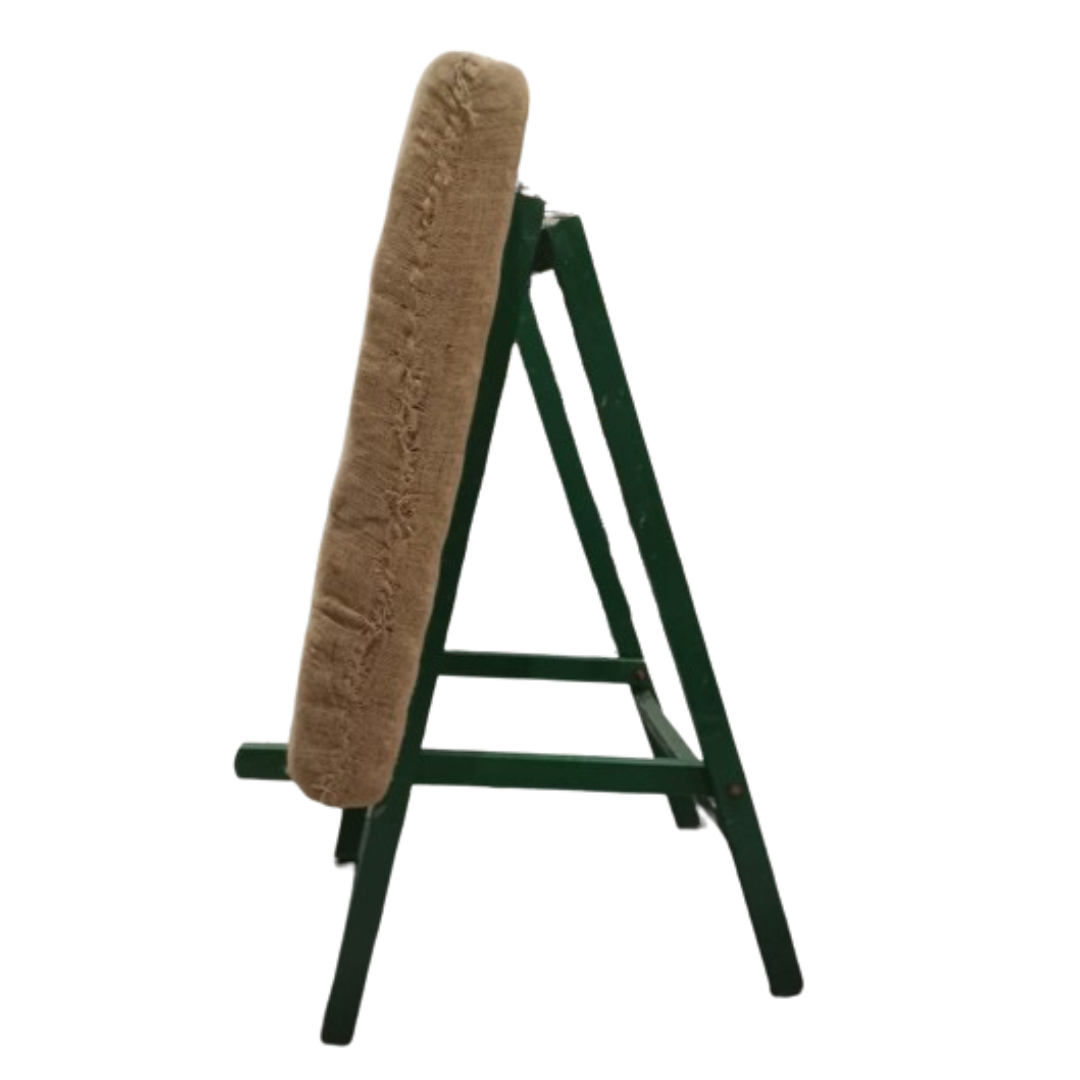

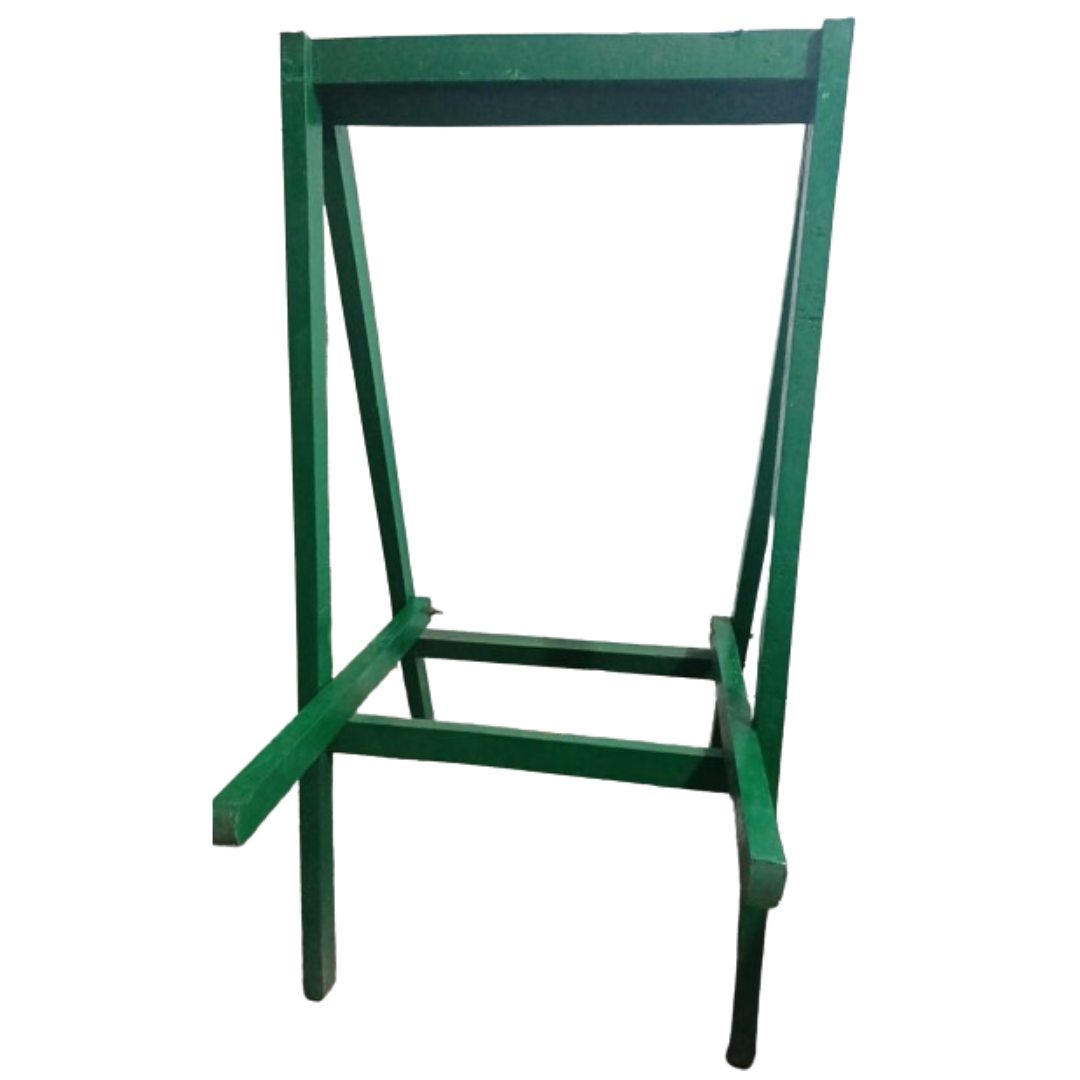

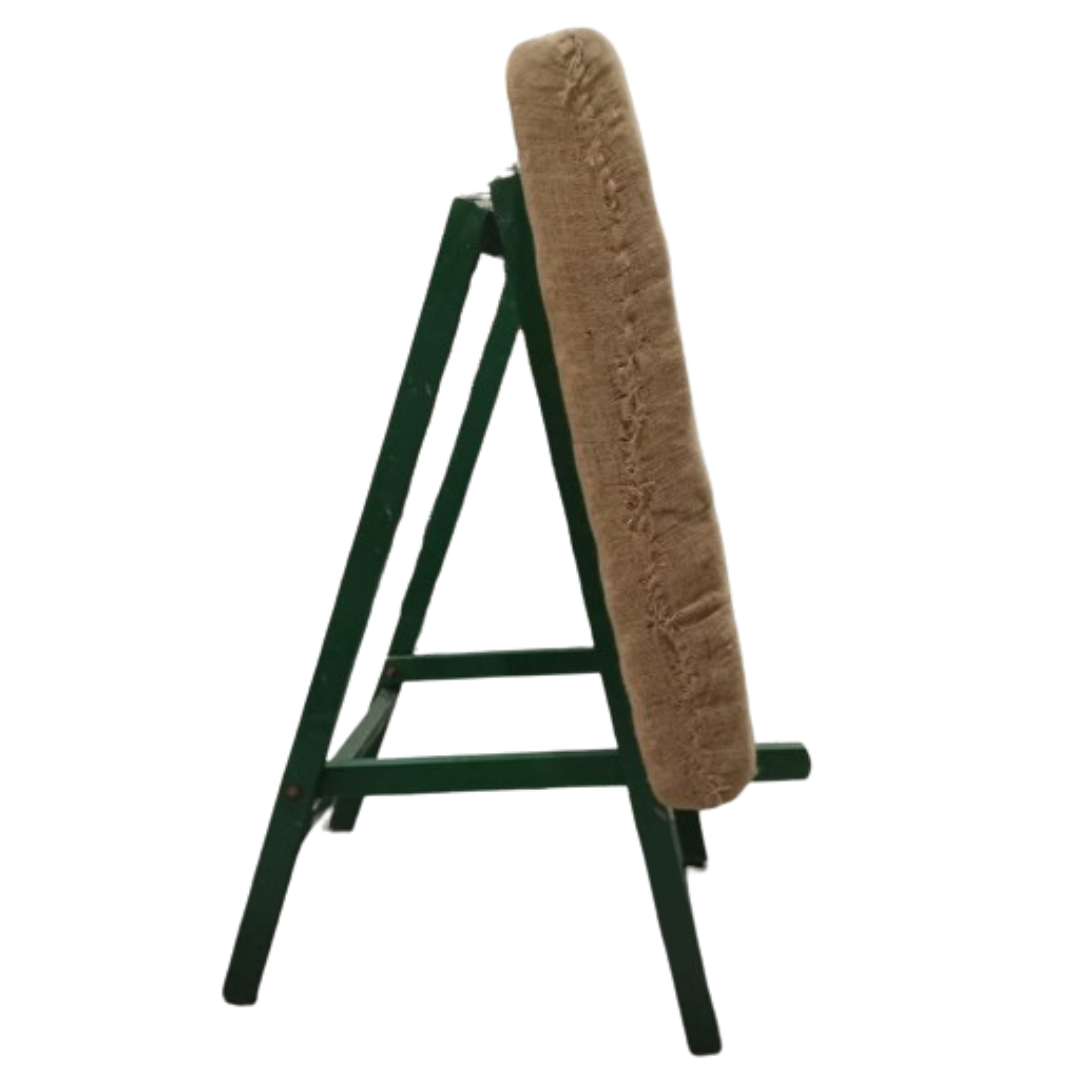

2. Target Stand Specifications
| Feature | Specification | Notes |
| Type | Adjustable ‘A-Frame’ or Four-Leg Static Stand | The image suggests a four-legged static design. |
| Material | Wood (Pine/Hardwood) or Heavy-Duty Steel | Steel is more durable; wood is traditional and often cheaper. |
| Target Compatibility | Designed to securely hold the target buttress size (e.g., 122 cm / 48″ targets). | |
| Stability/Footprint | Wide stance/footprint (e.g., ≈122 cm Wide x 150 cm Deep) | For maximum stability against arrow impact and wind. |
| Target Angle | 10∘ to 15∘ from vertical | Standard angle to prevent target face from bowing out. |
| Target Center Height | 130 cm (≈51.2 inches) from the ground | World Archery standard for the center of the target face. |
| Adjustability | Should accommodate various target sizes or heights. | |
| Assembly | Easy to assemble/disassemble (collapsible) for transport and storage. |
Recommended Dimensions (Based on FITA/World Archery Standards)
While the stand in the image appears smaller, professional archery standards often dictate the following for competition:
Overall Stand Height: ≈180 cm (71 inches)
Target Center Height (from ground): 130 cm (51.2 inches)
Stand Depth (Footprint): ≈150 cm (60.5 inches)
Approximate Weight: 36−43 kg (80 – 95 lbs) for a heavy-duty model.
SHIPPING CHARGES ARE EXTRA AS PER ACTUAL BASIS
Prices are Negotiable for Regular customers at many Products. Be our regular Customer.
