BEITER | MICRO COMPOUND ARROW REST | COMPOUNDS | ARROW REST COMPOUND
-
DESCRIPTION
• Horizontal and vertical movement without any fixation screw. The rest can be adjusted without loosening or tightening any screw! • Highest precision, thanks to a revolutionary concept: the rest can be adjusted without tolerances and play, with a precision not known until today. • Re-produceable settings: both the vertical and the horizontal millimetric scale have a Vernier scale (like a caliper). Thanks to that, the Rest can be adjusted with a precision of 0,2mm! The setting can be reproduced, resulting in the arrow rest to have zero play.- the launcher can be set in 2 different angles - 30° or 35° - by changing two little blocks. So the angles can be re-set precisely. • Guidance plates with bulge: plates with different lengths can be installed on top and bottom of the launcher. These will change the stiffness of the launcher and avoid any oscillation after the shot, which most of the time is the reason of bad clearance. The bulge on the plates gives the launcher the chance to follow the horizontal path of the arrow leaving the bow. • Stainless steel 5/16"-24 screw with flat head and large diameter. The Spacer made out of a special plastic allows to fix the screw better. A counter screw with an elastomer pad avoids any marking on the bow handle. • Different launcher sizes and thicknesses will be available to fit various arrow diameters and weights. • the profile of the arrow rests mounting block may not fit every handle (at the moment the Hoyt Carbon Matrix is the only bow not accepting the rest) • Includes: 1 Beiter Compound Rest with 2 launchers, including 2 inclination blocks (30°, 35°) 1 hex wrench for horizontal and vertical settings 1 stainless steel screw 5/16"-24 with spacer and a counter screw with elastomer pad 1 set of guidance plates with bulge: 22, 26, 30mm
BEITER | BEITER SCOPE | COMPOUNDS | SIGHTS SCOPES
The Beiter Scope Ø39 is the "Large Field" Scope, which Werner Beiter developed upon the requests of Compound Archers world-wide, asking for features like a large field of view, more light, variable aiming options, an easy and individual centering of the Peep, an easy exchangeable level...
The Beiter Scope Ø39 is equipped with a ZEISS K-Lens. Beiter is the only manufacturer in Archery using original ZEISS lenses Made in Germany!
ZEISS K-Lenses are available with center hole diam. 1,5mm for the use with Scope Pins or without.
The ZEISS K-Lens is available with following dioptries (magnifications) :
- +0,25 (~ 2 X)
- +0,50 (~ 4 X)
- +0,75 (~ 6 X)
- +1,00 (~ 8 X)
- +1,25 (~ 10 X)
A new concept for the BEITER Scope Ø39 is the Frame System, which adapts the field of view individually to the requested size.
Frames for the BEITER Scope Ø39 are available as Kit, including 1 each of following frames in the ordered colour: Ø39/Ø34, Ø39/Ø30, Ø39/Ø26, Ø39/Ø24
Available colours: Black, Red, Green and Clear
BEITER | BEITER PLUNGER BUTTON | RECURVE’S | PLUNGER/BUTTONS
The Beiter Plunger, developed 1985 to 1986, was introduced at the Las Vegas Shoot 1987. Actually it is represented on archery fields world wide.
Since 1992 all Olympic Medallists used Beiter Plungers as well as over 80% of all competing archers!
The Beiter Plunger is produced out of precision machined parts (the Beiter company supplies the watch-, precision-mechanic- and medical industry and is used to work only with the finest materials).
The notching scale cylinder allows an exact and reproducible spring tension time after time.
The thread cylinder is made out of high-grade refined steel, the springs out of stainless harmonic steel, the notching scale cylinder and the slotted nut out of anodized aluminum. The material used for the Plunger Pin offers excellent glide- and wear-behavior by using aluminum-, aluminum-carbon- or carbon-arrows.
BEITER | RECRUVE ARROW REST | RECURVE’S | ARROW REST
-
Beiter Rest for Recurve
The Beiter Rest for Recurve is the first Arrow Rest designed by Werner Beiter which will be sold on the archery market. Years of testing, many prototypes, hundreds of High Speed Films have helped to develop this first Beiter arrow rest for Recurve Bows.Some very important notes about the Beiter Rest for Recurve:- it has been designed to be used for both left- and right-handed archers!
- it may be changed within seconds, for example from Carbon- to Aluminum-Shafts !
- a scale on the Support allows a re-producable position of the Finger. Therefor the height adjustement of the Beiter Rest is extremely precise: the Nocking Point can be raised or lowered within seconds and by less than 1mm!! The position of the arrow on the Plunger Tipp as well!!
- the Beiter Rest for Recurve makes no noise! (according to our test archers!)
   The Support has incorporated a revolutionary Guiding System for the Finger, which may change position, carried by a specific designed Spindle. Due to the Support being applied with a specific angle (max ca. 15°), the Arrow Position versus the Plunger and the Nocking Point may be determined and changed very quickly and more precise than with any other Rest on the market! A Scale offers the opportunity to re-position the Finger after tests or changes. At the moment three different Finger are available:- 15-12-0,65 for shafts with small diameter, Ø 5,2mm +/-1mm
- 16-17-0,65 for shafts with medium diameter Ø 7,8mm +/-1mm
- 17-23-0,77 for shafts with large diameter Ø 9,3mm +/-1mm
- Two Finger (of the same make) are included in each Box, but extra Fingers are available as spare part.
- On the Finger you will find some details to determine the used model: The number "15 (S #1)" respectively "17 (S #1)" tells, that this finger may be used up to arrow to handle distance 15mm respectively 17mm (Dist. "A").
- The circled number tells, which arrow diameter will best fit for the use: 12 from 10/64" to 14/64", 23 from 20/64" to 24/64".
- The number at the bottom of the finger (e.g. 0,65), informs about the thickness of the finger.
- Beiter Plunger: it has the same diameter (Ø 6,0mm) as the centering hole of the Beiter Rest. This allows an extremely precise positioning of the Beiter rest on the bow.
- Nockposition: Turn the nock so that the vanes are in a "Y-Position" to the string. (see picture ) In this position you may reach the best possible clearance and the arrow may pass the bow-window without interference!
BEITER | BEITER V BAR | RECURVE’S | RECURVE V BARS
- Brand: Beiter
- Product Name: Beiter V Bar
- Bow Type: Recurve
- Functionality: Recurve V-Bar for stabilizing the bow
- Material: Durable materials for stability and longevity
- Design: Streamlined design for balance and performance
- Adjustability: Adjustable for personalized setup
- Compatibility: Suitable for use with recurve bows
BEITER | BOW WRENCH | TOOLS & ACCESSORIES | ALLEN SETS (L KEY)
The Beiter Bow Wrench has been developed especially for archers by Werner Beiter together with the leading German Tool Company WIHA.
The base for the Beiter Bow Wrench is the unique WIHA Pocketstar, with its not common featuers.
The Beiter Bow Wrench includes 11 Hex Wrenches (8 inches, 3 metric) and one little screw driver. Due to the patented push out knob you can easily open the tool and take out the wrenches ONE AT A TIME!!!
The metric keys can be for example used for the Beiter Plunger or the Beiter Centralizer, but also for Shibuya Sights and many other products not produced in the US.
The screw driver was specifically included for the Plunger, but can also be used to remove and install E-Clips on the axles of Compound bows.
Simply said: a practical tool for many needs!!

  Â

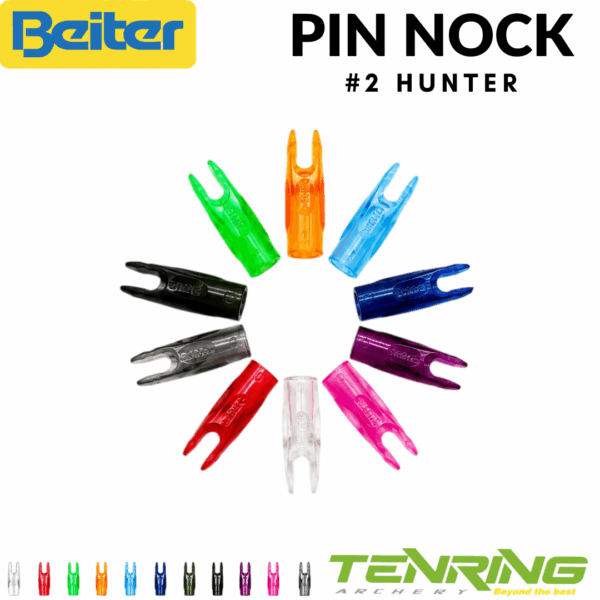

BEITER | PIN NOCK #2 HUNTER | ARROWS & ACCESSORIES |
Pin Nock #2 Hunter
Werner Beiter has invented the Asymmetric Nock! Not only: he was the first, that was able to produce specific nocks in different shapes for most arrows on the market! He developed Insert-Nocks, Outnocks, InOut-Nocks and PinOut-Nocks, to be used directly in or on shafts or on Bushings or Pins. Now Werner Beiter introduces the first Asymmetric Pin Nock, to complete the product line.
- Each Nock size has only one single mould. This offers highest precision and lowest tolerances. Every single PinOut-Nock comes out of the same cavity.
- The Nock does not pinch on the nocking point, it rests there with a spring effect. The working life is much higher and, very important, the Beiter Nock guarantees constant release from the bowstring, shot after shot.
- The Beiter Pin-Nock is available as asymmetric or symmetric (Hunter). To ensure that a Beiter Asymmetric Nock is placed correctly, control that the notch for the nocking point looks to the front of the arrow.
- The Beiter Pin-Nock can be shot without problem with all known nocking points; but the Beiter nocking point is the ideal partner for any asymmetric Beiter Nock.
- Beiter Pin-Nocks should fit an all Pins on the market, so that all arrow available shafts can be used with the unique Beiter nock system.
The Beiter Pin-Nock is available in the Beiter patented ASYMMETRIC version, as well as in the SYMMETRIC version, for Compound archers using a D-Loop. Pay attention that the Beiter Logo should face on top of the nock while shooting!
