SANLIDA X10 | Compound | Arrow rest
Further Information
Sanlida X10 Compound Rest
The Sanlida X10 compound rest body is precision manufactured from 6061 aluminium. Supplied with different sizes of high strength and highly elastic launchers. Features horizontal and vertical adjustment. Stainless steel fixing bolts. Superb arrow clearance. Extra long 70mm mount to satisfy most pro archers. Weight 100.4g. Black colour. RH models only. Blades included:- 4mm / 0.2
- 5mm / 0.25
- 5mm / 0.3
BEITER | RECRUVE ARROW REST | RECURVE’S | ARROW REST
-
Beiter Rest for Recurve
The Beiter Rest for Recurve is the first Arrow Rest designed by Werner Beiter which will be sold on the archery market. Years of testing, many prototypes, hundreds of High Speed Films have helped to develop this first Beiter arrow rest for Recurve Bows.Some very important notes about the Beiter Rest for Recurve:- it has been designed to be used for both left- and right-handed archers!
- it may be changed within seconds, for example from Carbon- to Aluminum-Shafts !
- a scale on the Support allows a re-producable position of the Finger. Therefor the height adjustement of the Beiter Rest is extremely precise: the Nocking Point can be raised or lowered within seconds and by less than 1mm!! The position of the arrow on the Plunger Tipp as well!!
- the Beiter Rest for Recurve makes no noise! (according to our test archers!)
The Support has incorporated a revolutionary Guiding System for the Finger, which may change position, carried by a specific designed Spindle. Due to the Support being applied with a specific angle (max ca. 15°), the Arrow Position versus the Plunger and the Nocking Point may be determined and changed very quickly and more precise than with any other Rest on the market! A Scale offers the opportunity to re-position the Finger after tests or changes. At the moment three different Finger are available:- 15-12-0,65 for shafts with small diameter, Ø 5,2mm +/-1mm
- 16-17-0,65 for shafts with medium diameter Ø 7,8mm +/-1mm
- 17-23-0,77 for shafts with large diameter Ø 9,3mm +/-1mm
- Two Finger (of the same make) are included in each Box, but extra Fingers are available as spare part.
- On the Finger you will find some details to determine the used model: The number "15 (S #1)" respectively "17 (S #1)" tells, that this finger may be used up to arrow to handle distance 15mm respectively 17mm (Dist. "A").
- The circled number tells, which arrow diameter will best fit for the use: 12 from 10/64" to 14/64", 23 from 20/64" to 24/64".
- The number at the bottom of the finger (e.g. 0,65), informs about the thickness of the finger.
- Beiter Plunger: it has the same diameter (Ø 6,0mm) as the centering hole of the Beiter Rest. This allows an extremely precise positioning of the Beiter rest on the bow.
- Nockposition: Turn the nock so that the vanes are in a "Y-Position" to the string. (see picture ) In this position you may reach the best possible clearance and the arrow may pass the bow-window without interference!

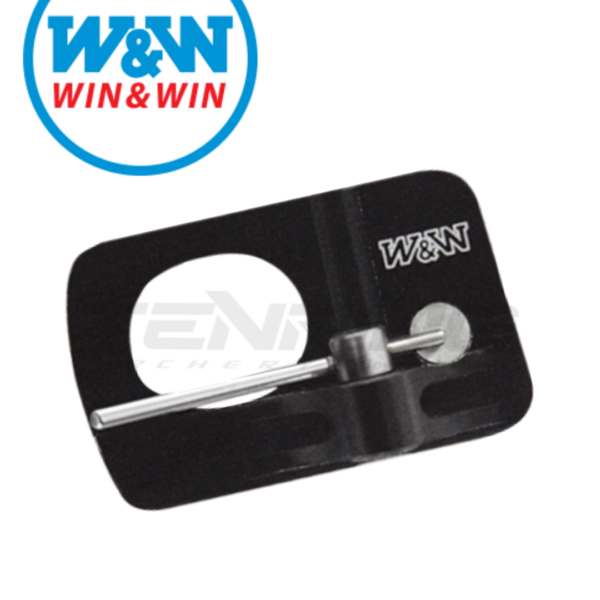

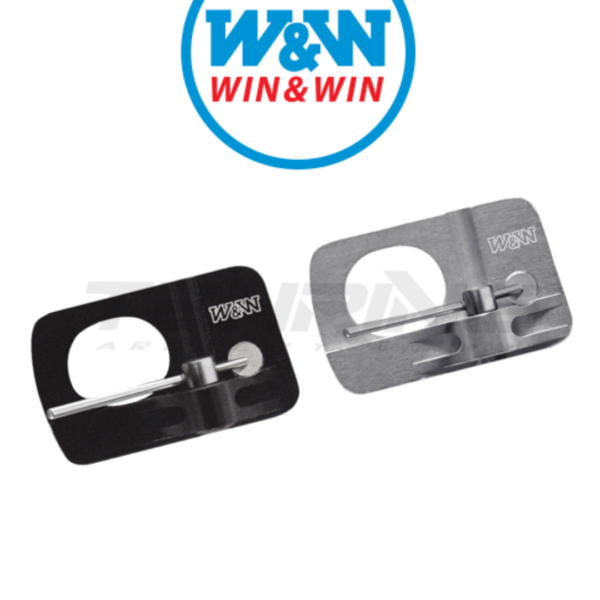

WIN&WIN | WMR200 ARROW REST | RECURVE BOW
Description
- Maximum Accuracy, smoothness, and stability
- Flipper-style rest arm
- Designed for Olympic recurve risers with a bearing to tighten groups on the target
- Minimises vertical nock travel
- To be shot in conjunction with a cushion plunger
- WIN&WIN’s recurve arrow rest uses a flipper-style arm to improve accuracy and ensure smooth shooting. It incorporates a bearing that tightens groups on the target while providing superb clearance. The arm is stiff and stable, minimizing the vertical movement that interferes with clean arrow flight.

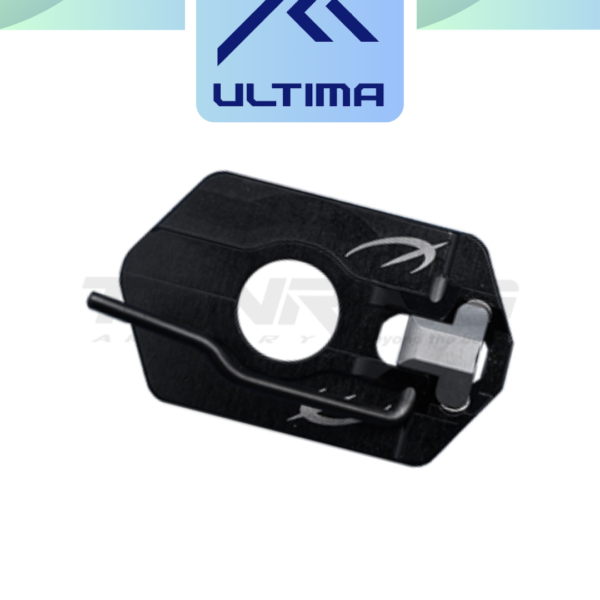

SHIBUYA | ULTIMA | RECURVE ARROW REST | RECURVE BOW
The Choice of over 90% of Tokyo Participants!
Over 90% of participants in Tokyo chose the ULTIMA Recurve Rest as their arrow rest. Find out why the vast majority of top-level archers chooses ULTIMA as one of the most integral parts of their setup!
FEATURES
DLC※1 -coated Offset Support Arm
The Ultima Recurve Rest’s Support Arm makes use of DLC-coating – a technology offering superior material strength and friction properties, applied in fields such as parts for racing engines. As a result, the energy loss inflicted on an arrow gliding over the arm is reduced to the bare minimum. The Support Arm’s Offset construction guarantees no contact with the cushion plunger’s barrel, even when used with the smallest diameter shafts.
※1: DLC (Diamond-like carbon): A coating of amorphous carbon,
granting exceptional hardness, wear resistance, and slickness
(low coefficient of friction).
Dual Adjust System for perfect clearance
The Ultima Recurve Rest is adjustable not only vertically, to ensure compatibility with any size arrow shaft, but also horizontally to compensate for sight window depth and plunger settings. There is no need to ever cut or bend the support arm again! Adjustments are easy to make with one screw, even when the arrow is rested on the support arm.
CNC※2 machined for unrivaled precision manufacturing
By employing CNC milling, Shibuya was able to reduce dimensional error margins to an unprecedented minimum. The innovative “V-lock” Magnet configuration ensures smooth, repeatable movement that eclipses everything the market has seen to date!。
※2: CNC (Computer Numerical Control): computerized automation of machine tools such as milling machines.
SHIBUYA's V-Lock System – unrivaled precision and repeatability
The line of magnetic force between the Ultima Recurve Rest’s dual magnets catches and returns the Support Arm safely and repeatably, exponentially increasing the reliability of the rest. Shibuya uses only highest quality corrosion-resistant samarium cobalt magnets, known for their constant magnetic force independent of temperature changes.
By placing the adjustment screw between the magnets, Shibuya was able to maintain a super-slim construction (only 3.8mm including adhesive tape), while at the same time using a 3mm screw for comfortable, safe adjustments.
Industrial-strength adhesive tape
For attachment to the bow riser, Shibuya is employing industrial-strength double-sided adhesive tape from a trusted maker. The flexible, thick tape is ideal for ensuring a lasting and reliable bond. The hole is matched to major manufacturers’ plunger dimensions, which makes precise attachment easier than ever.
Ambidextrous Design
Ultima Recurve Rest can be switched between RH and LH simply by reversing the support arm’s fastening direction.
FIVICS | MAGNETIC ADJUSTABLE BUTTERFLY ARROW REST | RECURVE’S | ARROW REST (Copy)
Description
Magnetic, stick-on rest Durable aluminum construction Ambidextrous designAdditional information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 5 × 25 × 10 cm |
| COLOUR | SILVER, PINK, YELLOW, BLUE, BLACK, RED |
FIVICS| RS-REST| ARROW REST
- Ambidextrous Design
- Low profile suitable for all nock types

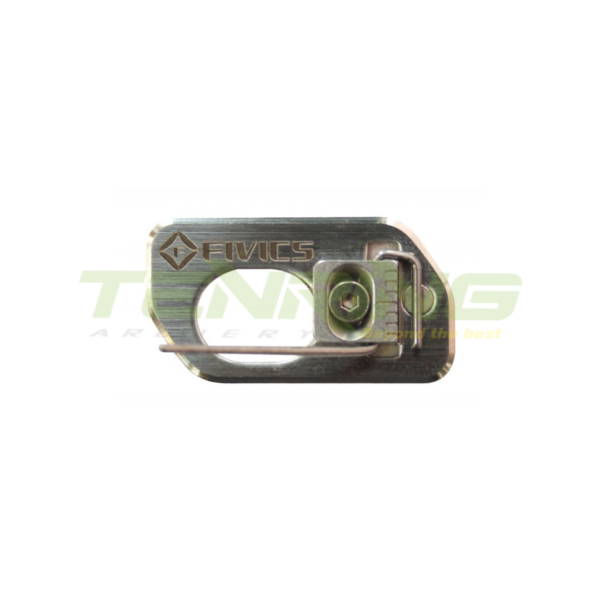

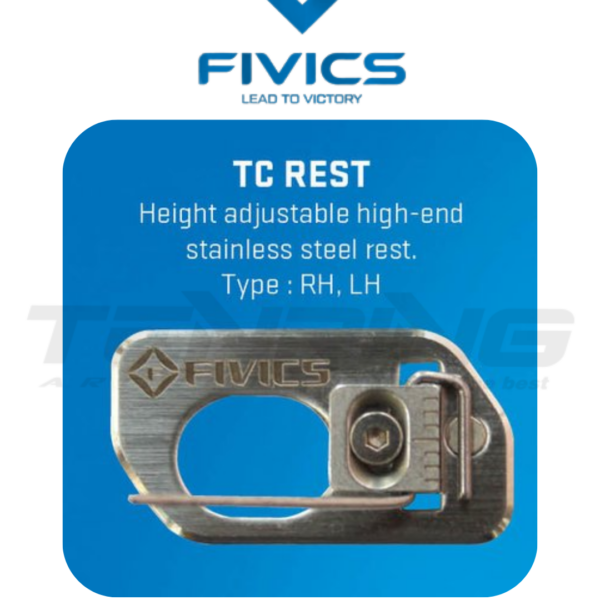

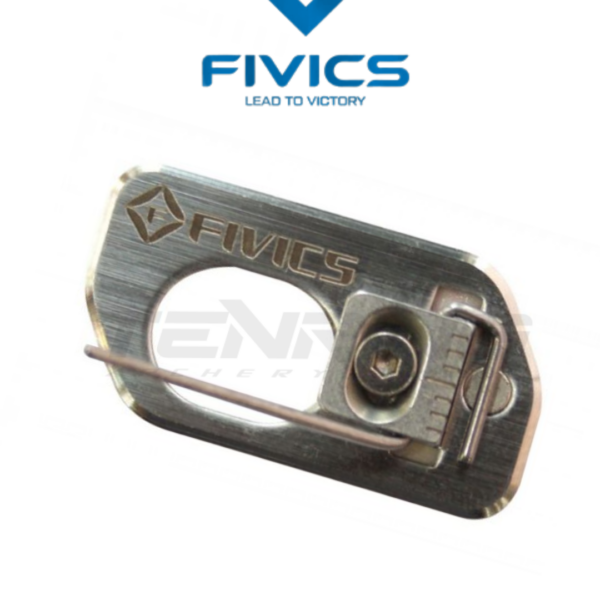

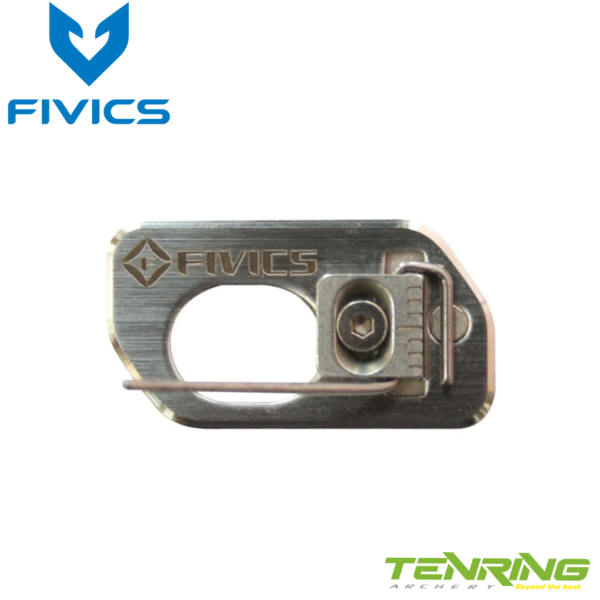

FIVICS | TC RECURVE | ARROW REST
Full Description :
Height Adjustable high-end rest, Durable construction for precise and secure positioning.
Description
- Stainless steel construction - Magnetic arrow support arm - Adjustable elevation
AVALON | CLASSIC MAGNETIC ARROW REST WITH SCREW | RECURVE BOW ARROW REST
DESCRIPTION
• Precision bolt on magnetic arrow rest
• Adjustable height for different diameter arrow shafts
• Adjustable magnetic strength
• Adjustment screws make for easy tuning
• Includes 5/16" x 24 mounting screw

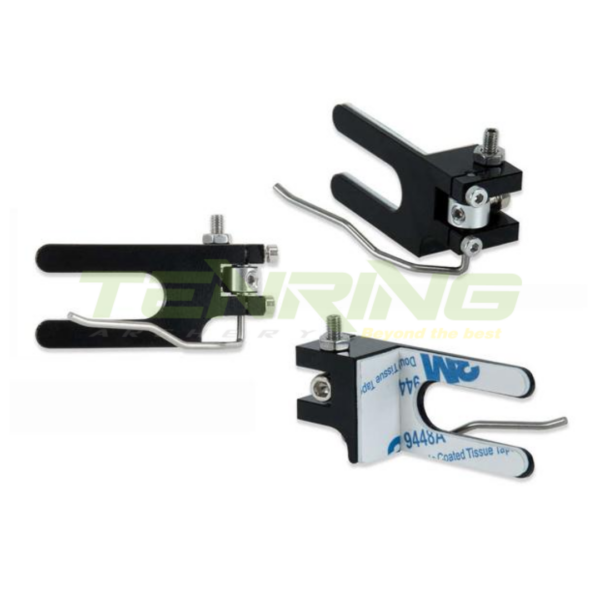

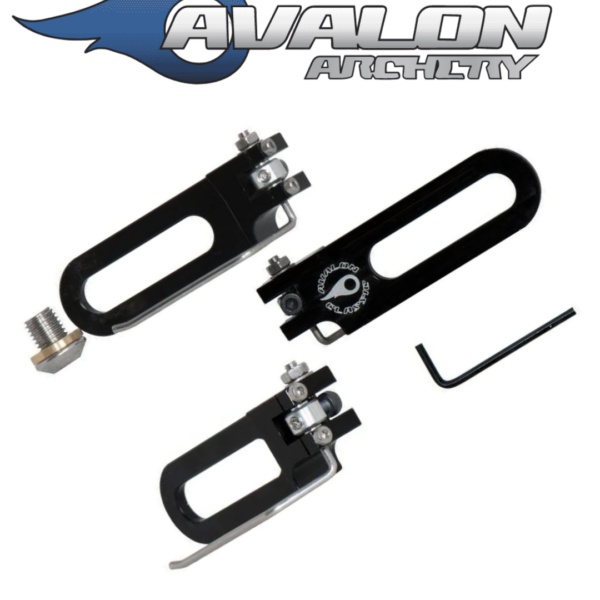

AVALON | ADJUSTABLE ARROW REST CLASSIC AXIS | RECURVE’S | ARROW REST
Avalon Classic Magnetic Arrow Rest is an affordable and trustworthy option for your recurve bow. It can be installed with the included 5/16" mounting screw, or with your regular pressure button. The center slot is 3.8 cm (1.5") long and allows you to adjust the point of placement. The height of the arrow arm is also adjustable, making it a good choice for arrow of any diameter.
Includes mounting screw, washer, and two Allen wrenches.
Does not include double-sided adhesive.
WNS BY WIN&WIN | S-RE | MAGNETIC RECURVE ARROW REST|
- TYPE : LH, RH
- COLOR : Black, Red, Blue, Silver

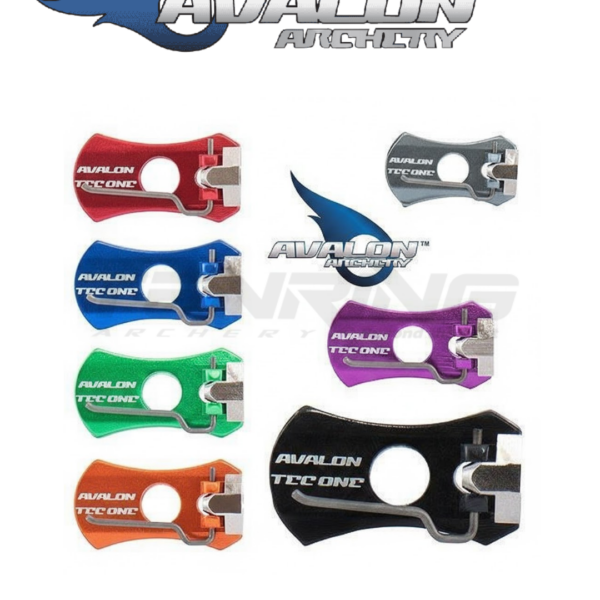

AVALON | TEC ONE MAGNETIC | ARROW REST
DESCRIPTION
- Stick-on magnetic arrow rest for recurve bows
- Available in 7 different anodized colors
- Easy to set-up
- Arrow rest arm adjustable according to your shaft diameter

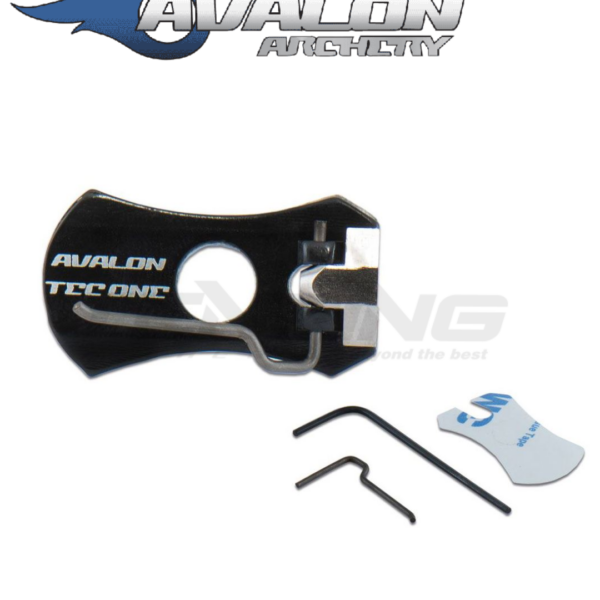

- Including spare double-sided tape, spare rest arm, and Allen key
-
The new tec one magnetic rest from Avalon is compact, smooth and adjustable recurve stick-on rest. The tec one magnetic rest is available in an array of attractive colours. Allen keys and an extra adhesive pad are included with the rest. Available in:
- Right or Left Handed.
- Black, Grey, Blue, Red, Green, Orange and Purple.
